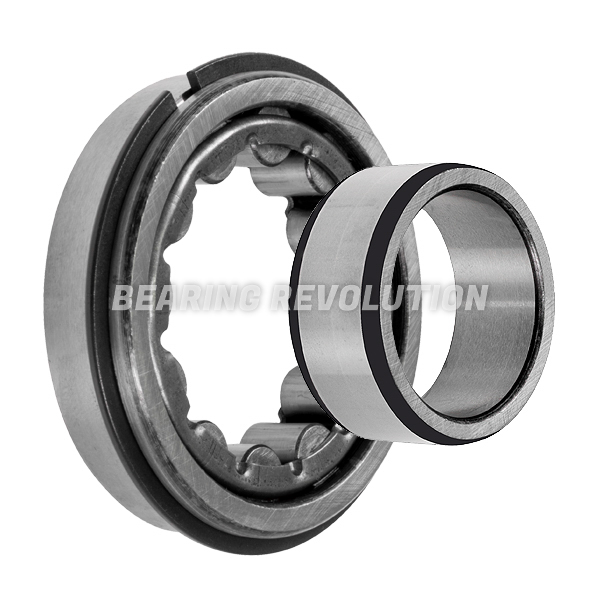

NU 309 NR
NU-SERIES CYLINDRICAL ROLLER BEARING WITH A 45MM BORE - STEEL CAGE - PREMIUM RANGE
Single Row Cylindrical Roller Bearing complete with Snap Ring from our Premium range. No ribs on the inner ring and two ribs on the outer ring. 45mm bore, 100mm OD, 25mm width.
Also known as NU309NR
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for NU 309 NR | |
| Reference | NU 309 NR |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Width | 25mm |
| Snap Ring | Snap Ring |
| Weight (KG) | 0.912 |

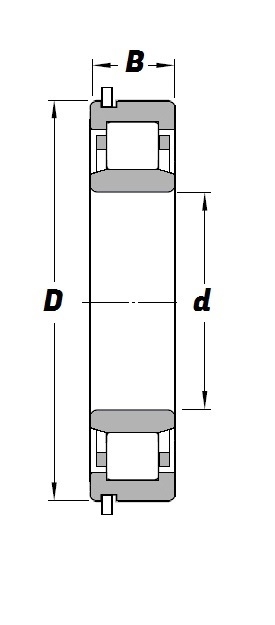

Schematic for NU 309 NR | |
| B | 25mm |
| d | 45mm |
| D | 100mm |
