NU 316 C3

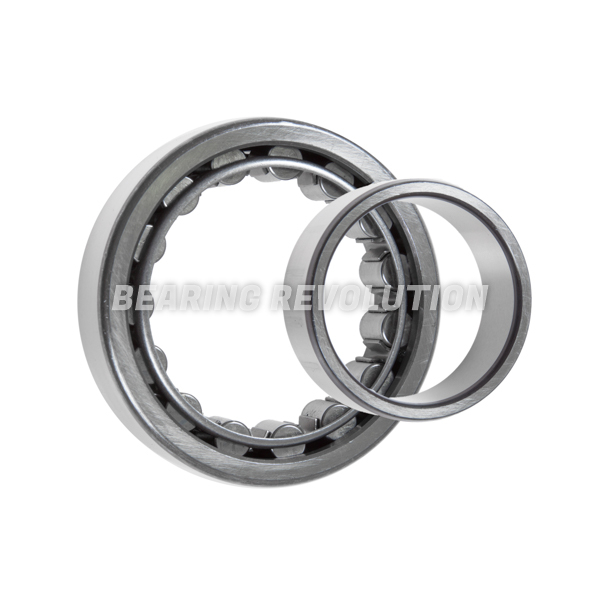

NU-SERIES CYLINDRICAL ROLLER BEARING WITH A 80MM BORE - STEEL CAGE - PREMIUM RANGE
Single Row Cylindrical Roller Bearing from our Premium range. No ribs on the inner ring and two ribs on the outer ring. 80mm bore, 170mm OD, 39mm width.
Also known as NU316C3
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for NU 316 C3 | |
| Reference | NU 316 C3 |
| Brand | Premium |
| Inside Diameter | 80mm |
| Outside Diameter | 170mm |
| Width | 39mm |
| Clearance | C3 |
| Weight (KG) | 3.97 |
Schematic for NU 316 C3 | |
| B | 39mm |
| d | 80mm |
| D | 170mm |
