NUP 205 N C3

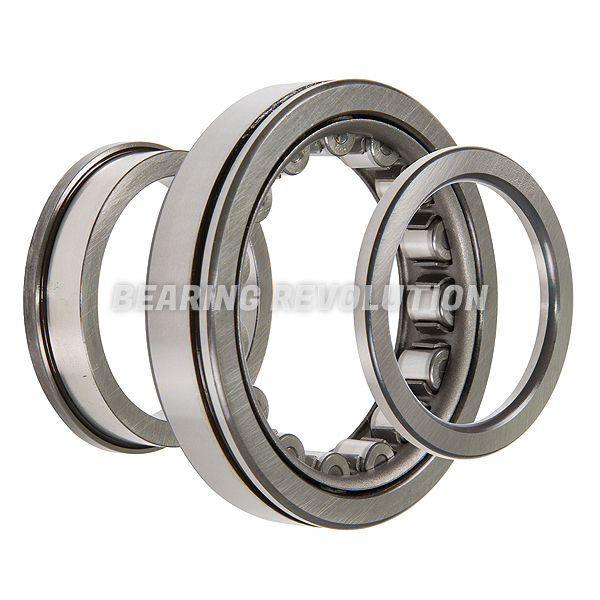

NUP-SERIES CYLINDRICAL ROLLER BEARING WITH A 25MM BORE - STEEL CAGE - PREMIUM RANGE
Single Row Cylindrical Roller Bearing complete with Snap Ring Groove from our Premium range. Two ribs on the outer ring and one rigid rib on the inner ring along with a loose rib washer on opposite side. 25mm bore, 52mm OD, 15mm width.
Also known as NUP205NC3
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for NUP 205 N C3 | |
| Reference | NUP 205 N C3 |
| Brand | Premium |
| Inside Diameter | 25mm |
| Outside Diameter | 52mm |
| Width | 15mm |
| Clearance | C3 |
| Snap Ring | Snap Ring Groove |
| Weight (KG) | 0.13 |
Schematic for NUP 205 N C3 | |
| B | 15mm |
| d | 25mm |
| D | 52mm |
