NUP 2224 E C4
NUP-SERIES CYLINDRICAL ROLLER BEARING WITH A 120MM BORE - PREMIUM RANGE

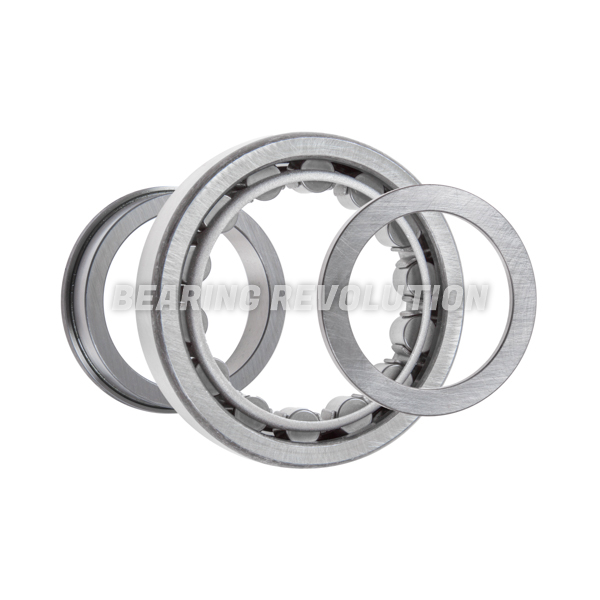

Single Row Cylindrical Roller Bearing from our Premium range. Two ribs on the outer ring and one rigid rib on the inner ring along with a loose rib washer on opposite side. 120mm bore, 215mm OD, 58mm width.
Also known as NUP2224EC4
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for NUP 2224 E C4 | |
| Reference | NUP 2224 E C4 |
| Brand | Premium |
| Inside Diameter | 120mm |
| Outside Diameter | 215mm |
| Width | 58mm |
| Clearance | C4 |
| Weight (KG) | 8.55 |
Schematic for NUP 2224 E C4 | |
| B | 58mm |
| d | 120mm |
| D | 215mm |
