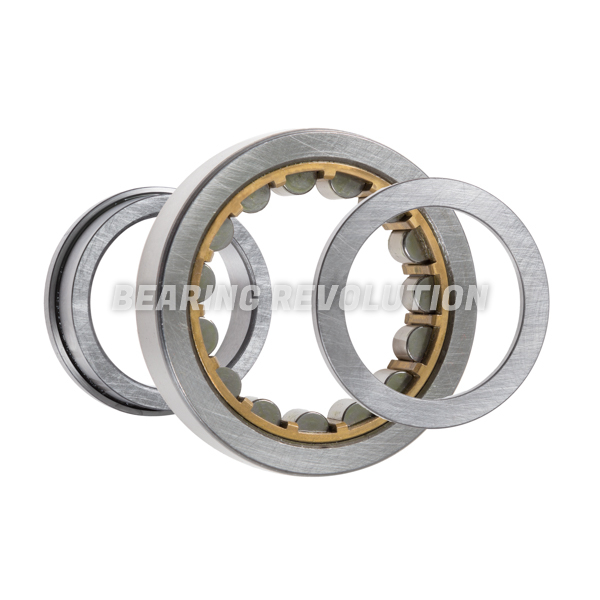

NUP 2324 C3
NUP-SERIES CYLINDRICAL ROLLER BEARING WITH A 120MM BORE - BRASS CAGE - BUDGET RANGE
Single Row Cylindrical Roller Bearing from our Budget range. Two ribs on the outer ring and one rigid rib on the inner ring along with a loose rib washer on opposite side. 120mm bore, 260mm OD, 86mm width.
Also known as NUP2324C3
Our budget range is manufactured to International standards and represents great value for money.
Please use this form for enquiries and pricing.
Specifications for NUP 2324 C3 | |
| Reference | NUP 2324 C3 |
| Brand | Budget |
| Inside Diameter | 120mm |
| Outside Diameter | 260mm |
| Width | 86mm |
| Clearance | C3 |
| Weight (KG) | 24 |
Schematic for NUP 2324 C3 | |
| B | 86mm |
| d | 120mm |
| D | 260mm |
