Please note photos are for illustration purposes only

NUP 309 E C3, NUP-SERIES CYLINDRICAL ROLLER BEARING WITH A 45MM BORE - STEEL CAGE - SELECT RANGE

Name: NUP 309 E C3, NUP-Series Cylindrical Roller Bearing with a 45mm bore - Steel Cage - Select Range
Brand: Select
Price: 115.00 GBP
Availability: InStock

BR Stock No. S-NUP 309 E C3 | Brand: Select | Mfr. Part No. NUP 309 E C3

Single Row Cylindrical Roller Bearing from our Select range. Two ribs on the outer ring and one rigid rib on the outer ring along with a loose rib washer on opposite side. 45mm ID, 100mm OD, 25mm width. Also known as

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£95.83 (£115.00 inc VAT)
5 - 9£91.05 (£109.26 inc VAT)
10 +£86.26 (£103.51 inc VAT)
Bulk Order PricesENQUIRE

NUP 309 E C3, NUP-Series Cylindrical Roller Bearing with a 45mm bore - Steel Cage - Select Range Schematic

Specifications for NUP 309 E C3, NUP-Series Cylindrical Roller Bearing with a 45mm bore - Steel Cage - Select Range
Reference	NUP 309 E C3
Brand	Select
Inside Diameter	45mm
Outside Diameter	100mm
Width	25mm
Clearance	C3
Weight (KG)	0.37

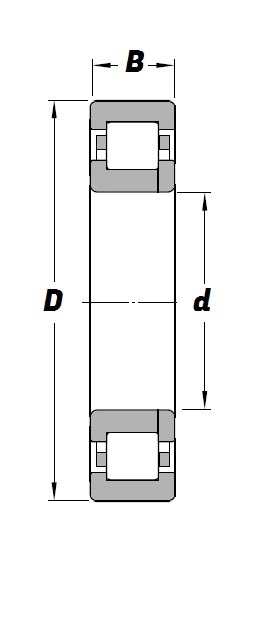

Schematic for NUP 309 E C3, NUP-Series Cylindrical Roller Bearing with a 45mm bore - Steel Cage - Select Range
B	25mm
d	45mm
D	100mm
