NUP 309 NR
NUP-SERIES CYLINDRICAL ROLLER BEARING WITH A 45MM BORE - PREMIUM RANGE
Single Row Cylindrical Roller Bearing complete with Snap Ring from our Premium range. Two ribs on the outer ring and one rigid rib on the inner ring along with a loose rib washer on opposite side. 45mm bore, 100mm OD, 25mm width.
Also known as NUP309NR
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for NUP 309 NR | |
| Reference | NUP 309 NR |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Width | 25mm |
| Snap Ring | Snap Ring |
| Weight (KG) | 0.87 |

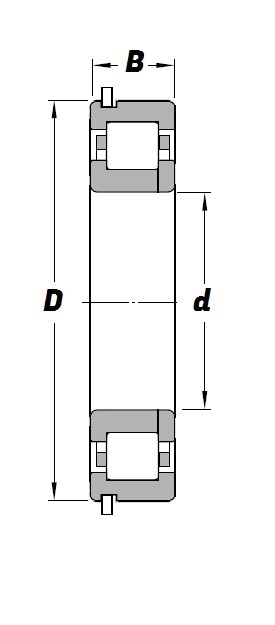

Schematic for NUP 309 NR | |
| B | 25mm |
| d | 45mm |
| D | 100mm |
