NUP 310 NR C3 P6
NUP-SERIES CYLINDRICAL ROLLER BEARING WITH A 50MM BORE - BRASS CAGE - PREMIUM RANGE

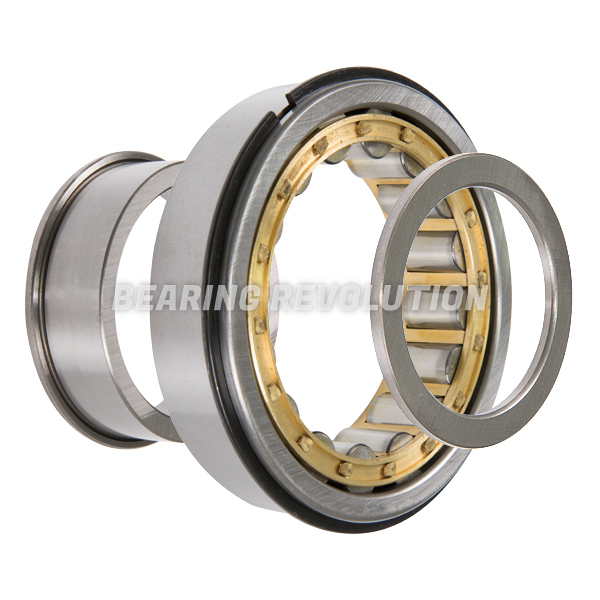

High Precision Single Row Cylindrical Roller Bearing complete with Snap Ring from our Premium range. Two ribs on the outer ring and one rigid rib on the inner ring along with a loose rib washer on opposite side. 50mm bore, 110mm OD, 27mm width.
Also known as NUP310NRC3P6
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for NUP 310 NR C3 P6 | |
| Reference | NUP 310 NR C3 P6 |
| Brand | Premium |
| Inside Diameter | 50mm |
| Outside Diameter | 110mm |
| Width | 27mm |
| Clearance | C3 |
| Snap Ring | Snap Ring |
| Weight (KG) | 1.15 |

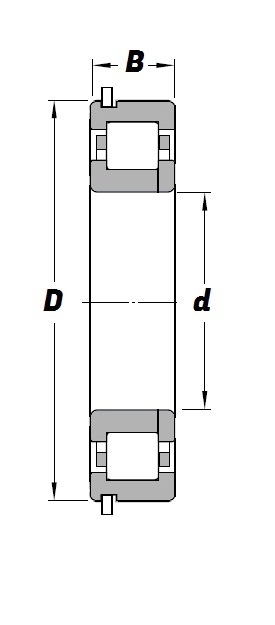

Schematic for NUP 310 NR C3 P6 | |
| B | 27mm |
| d | 50mm |
| D | 110mm |
