NUP 311 NR C3

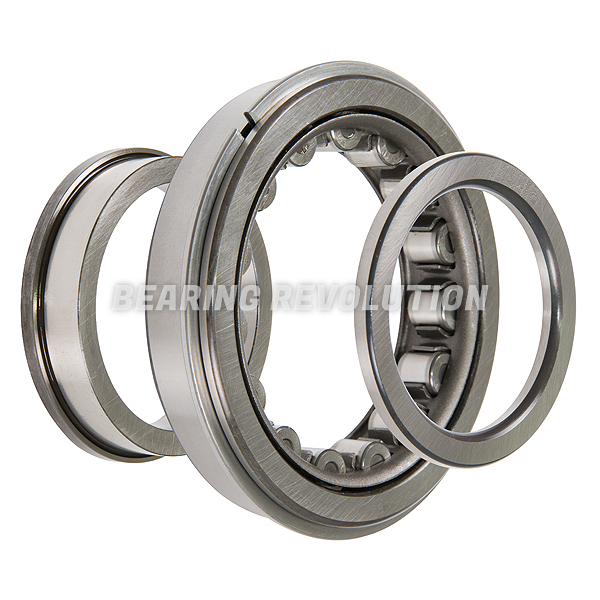

NUP-SERIES CYLINDRICAL ROLLER BEARING WITH A 55MM BORE - STEEL CAGE - BUDGET RANGE
Single Row Cylindrical Roller Bearing complete with Snap Ring from our Budget range. Two ribs on the outer ring and one rigid rib on the inner ring along with a loose rib washer on opposite side. 55mm bore, 120mm OD, 29mm width.
Also known as NUP311NRC3
Our budget range is manufactured to International standards and represents great value for money.
Please use this form for enquiries and pricing.
Specifications for NUP 311 NR C3 | |
| Reference | NUP 311 NR C3 |
| Brand | Budget |
| Inside Diameter | 55mm |
| Outside Diameter | 120mm |
| Width | 29mm |
| Clearance | C3 |
| Snap Ring | Snap Ring |
| Weight (KG) | 1.45 |

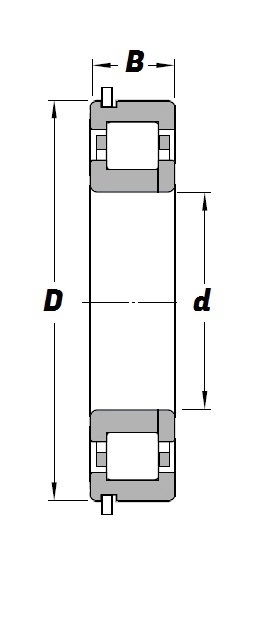

Schematic for NUP 311 NR C3 | |
| B | 29mm |
| d | 55mm |
| D | 120mm |
