NUP 313 E N C3
NUP-SERIES CYLINDRICAL ROLLER BEARING WITH A 65MM BORE - BRASS CAGE - PREMIUM RANGE

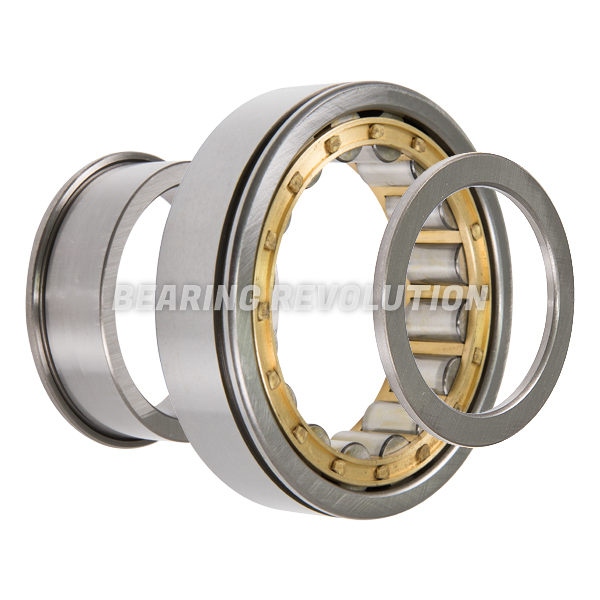

Single Row Cylindrical Roller Bearing complete with Snap Ring Groove from our Premium range. Two ribs on the outer ring and one rigid rib on the inner ring along with a loose rib washer on opposite side. 65mm bore, 140mm OD, 33mm width.
Also known as NUP313ENC3
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for NUP 313 E N C3 | |
| Reference | NUP 313 E N C3 |
| Brand | Premium |
| Inside Diameter | 65mm |
| Outside Diameter | 140mm |
| Width | 33mm |
| Clearance | C3 |
| Snap Ring | Snap Ring Groove |
| Weight (KG) | 2.25 |
Schematic for NUP 313 E N C3 | |
| B | 33mm |
| d | 65mm |
| D | 140mm |
