NUP 314 E N
NUP-SERIES CYLINDRICAL ROLLER BEARING WITH A 70MM BORE - BRASS CAGE - BUDGET RANGE

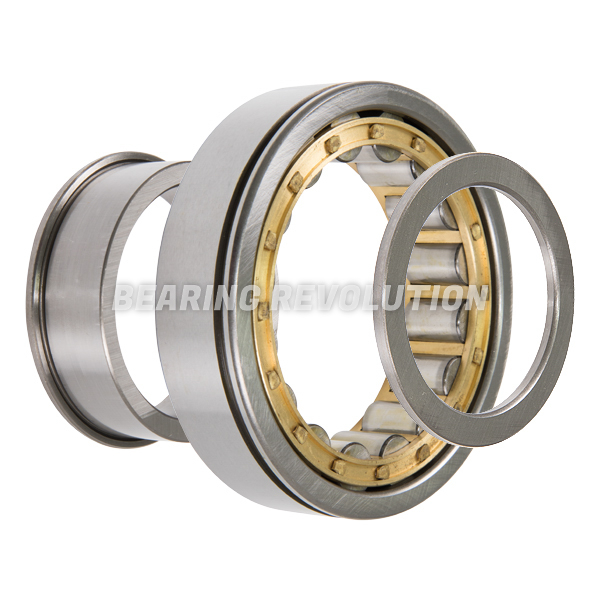

Single Row Cylindrical Roller Bearing complete with Snap Ring Groove from our Budget range. Two ribs on the outer ring and one rigid rib on the inner ring along with a loose rib washer on opposite side. 70mm bore, 150mm OD, 35mm width.
Also known as NUP314EN
Our budget range is manufactured to International standards and represents great value for money.
Please use this form for enquiries and pricing.
Specifications for NUP 314 E N | |
| Reference | NUP 314 E N |
| Brand | Budget |
| Inside Diameter | 70mm |
| Outside Diameter | 150mm |
| Width | 35mm |
| Snap Ring | Snap Ring Groove |
| Weight (KG) | 2.75 |
Schematic for NUP 314 E N | |
| B | 35mm |
| d | 70mm |
| D | 150mm |
