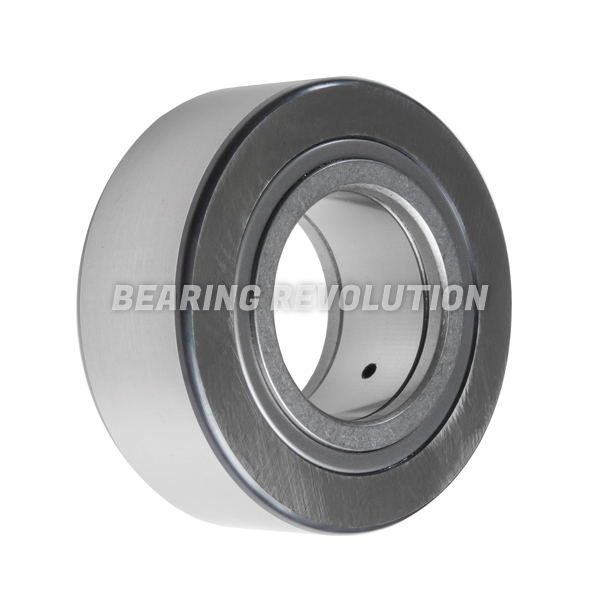

NUTR 4090, YOKE TYPE SUPPORT ROLLER WITH A 40MM BORE - PREMIUM RANGE
Full compliment cylindrical roller set yoke type support roller with axial guidance for the outer ring by the rolling elements, crowned outer, seals on both side, from our Premium range. 40mm ID, 90mm OD, 32mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£172.18 (£206.62 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NUTR 4090, Yoke Type Support Roller with a 40mm bore - Premium Range | |
| Reference | NUTR 4090 |
| Brand | Premium |
| Inside Diameter | 40mm |
| Outside Diameter | 90mm |
| Width | 32mm |
| Weight (KG) | 1.129 |

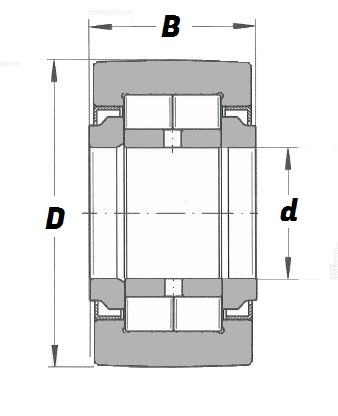

Schematic for NUTR 4090, Yoke Type Support Roller with a 40mm bore - Premium Range | |
| B | 32mm |
| d | 40mm |
| D | 90mm |
