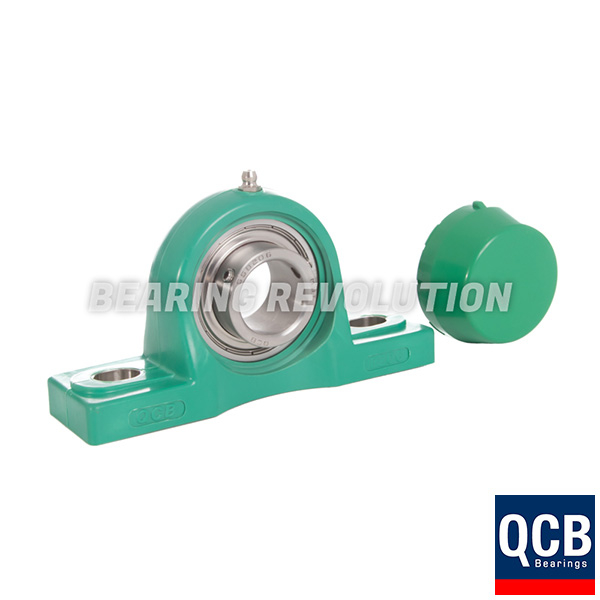

PPL 205 S/S N 6A GRN, GREEN THERMOPLASTIC PILLOW BLOCK HOUSING UNIT WITH A 25 BORE - SELECT RANGE

Name: PPL 205 S/S N 6A GRN, Green Thermoplastic Pillow Block Housing Unit with a 25 bore - Select Range
Brand: Select
Price: 68.51 GBP
Availability: InStock

BR Stock No. S-PPL 205 S/S N 6A GRN | Brand: Select | Mfr. Part No. PPL 205 S/S N 6A GRN

Metric NP - UCP type Green Thermoplastic Pillow Block Housing Unit with Flat Back Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£57.09 (£68.51 inc VAT)
5 - 9£54.23 (£65.08 inc VAT)
10 +£51.36 (£61.63 inc VAT)
Bulk Order PricesENQUIRE

PPL 205 S/S N 6A GRN, Green Thermoplastic Pillow Block Housing Unit with a 25 bore - Select Range Schematic

Specifications for PPL 205 S/S N 6A GRN, Green Thermoplastic Pillow Block Housing Unit with a 25 bore - Select Range
Reference	PPL 205 S/S N 6A GRN
Brand	Select
Inside Diameter	25mm
Bolt	M10
Max Torque	25Nm
Weight (KG)	0.31

Schematic for PPL 205 S/S N 6A GRN, Green Thermoplastic Pillow Block Housing Unit with a 25 bore - Select Range
a	140.5mm
b	38mm
Bi	34mm
e	105mm
g	14.5mm
h	36.5mm
KG	0.31
n	14.3mm
s1	11mm
S1	14mm
w	71mm
