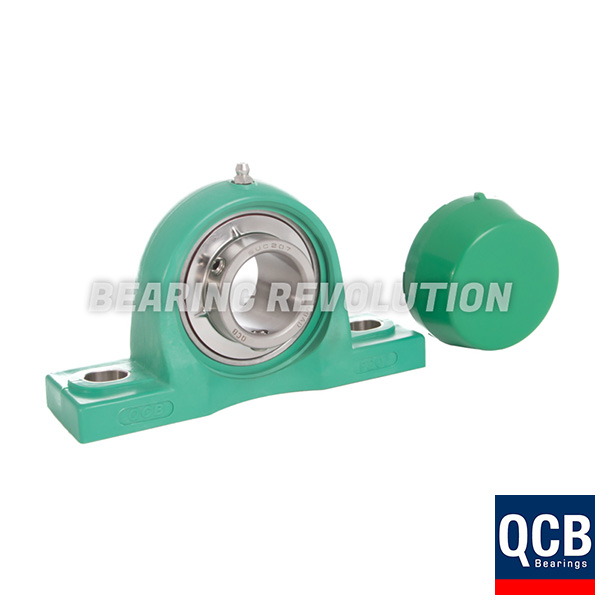

PPL 207 S/S N 6 GRN, GREEN THERMOPLASTIC PILLOW BLOCK HOUSING UNIT WITH A 35 BORE - SELECT RANGE
Metric NP - UCP type Green Thermoplastic Pillow Block Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£94.36 (£113.23 inc VAT)
- 5 - 9£89.65 (£107.58 inc VAT)
- 10 +£84.93 (£101.92 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for PPL 207 S/S N 6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 35 bore - Select Range | |
| Reference | PPL 207 S/S N 6 GRN |
| Brand | Select |
| Inside Diameter | 35mm |
| Bolt | M12 |
| Max Torque | 35Nm |
| Weight (KG) | 0.76 |
Schematic for PPL 207 S/S N 6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 35 bore - Select Range | |
| a | 168mm |
| b | 48mm |
| Bi | 42.9mm |
| e | 127mm |
| g | 18mm |
| h | 47.6mm |
| KG | 0.76 |
| n | 17.5mm |
| s1 | 14mm |
| S1 | 18mm |
| w | 94.5mm |
