Q 205 C3
FOUR-POINT CONTACT BALL BEARING WITH A 25MM BORE - STEEL CAGE - BUDGET RANGE

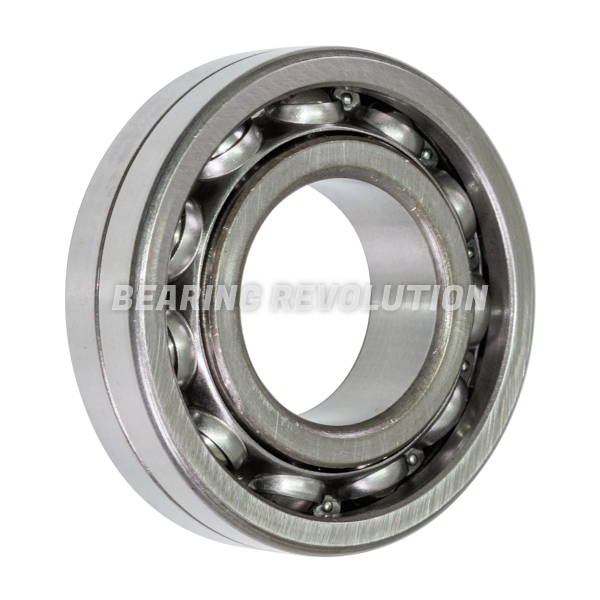

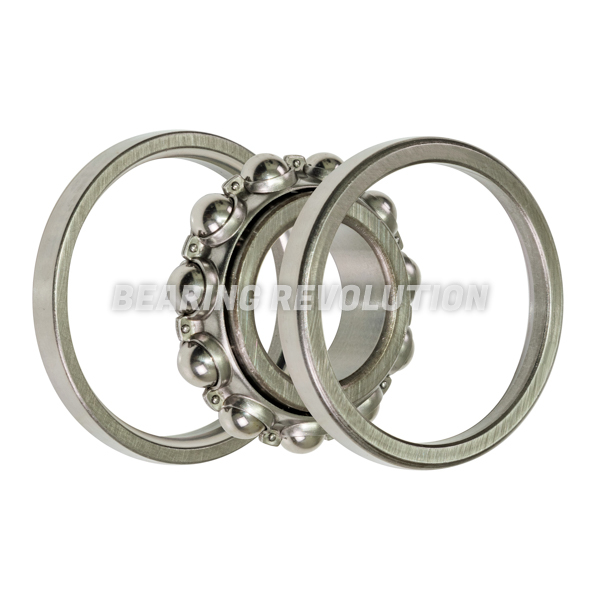

Standard series four point angular contact ball bearing with a split outer race and C3 clearance from our Budget range. 25mm ID, 52mm OD and 15mm width.
Our budget range is manufactured to International standards and represents great value for money.
Please use this form for enquiries and pricing.
Specifications for Q 205 C3 | |
| Reference | Q 205 C3 |
| Brand | Budget |
| Inside Diameter | 25mm |
| Outside Diameter | 52mm |
| Width | 15mm |
| Clearance | C3 |
| Weight (KG) | 0.168 |
Schematic for Q 205 C3 | |
| B | 15mm |
| d | 25mm |
| D | 52mm |
