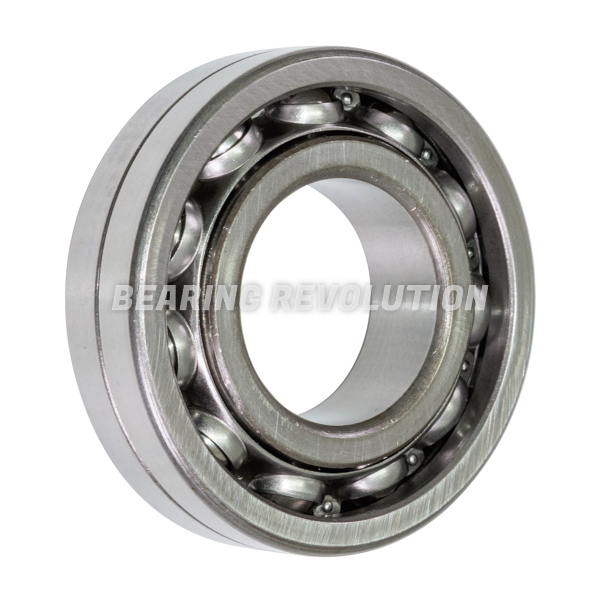

Q 209
FOUR-POINT CONTACT BALL BEARING WITH A 45MM BORE - STEEL CAGE - BUDGET RANGE

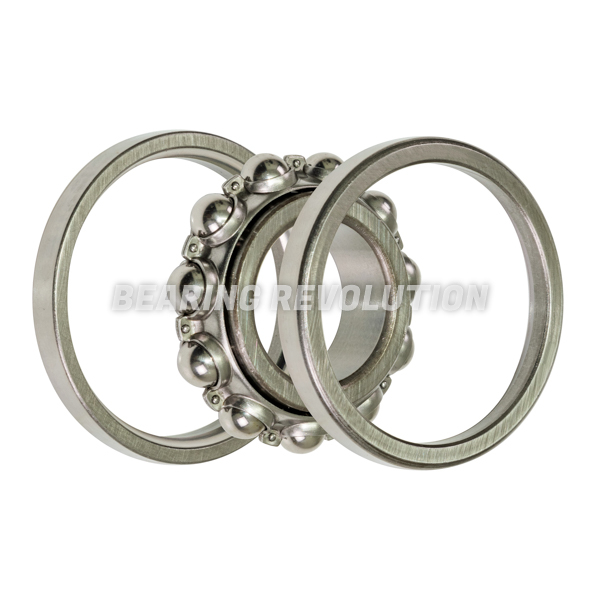

Standard series four point angular contact ball bearing with a split outer race from our Budget range. 45mm ID, 85mm OD and 19mm width.
Also known as N 2539, QA 45
Our budget range is manufactured to International standards and represents great value for money.
Please use this form for enquiries and pricing.
Specifications for Q 209 | |
| Reference | Q 209 |
| Brand | Budget |
| Inside Diameter | 45mm |
| Outside Diameter | 85mm |
| Width | 19mm |
| Weight (KG) | 0.499 |
Schematic for Q 209 | |
| B | 19mm |
| d | 45mm |
| D | 85mm |
