Q 217 C3

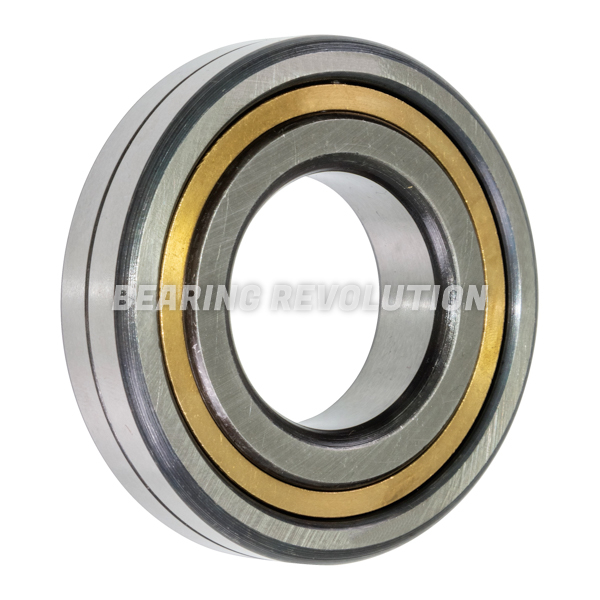

FOUR-POINT CONTACT BALL BEARING WITH A 85MM BORE - BRASS CAGE - BUDGET RANGE

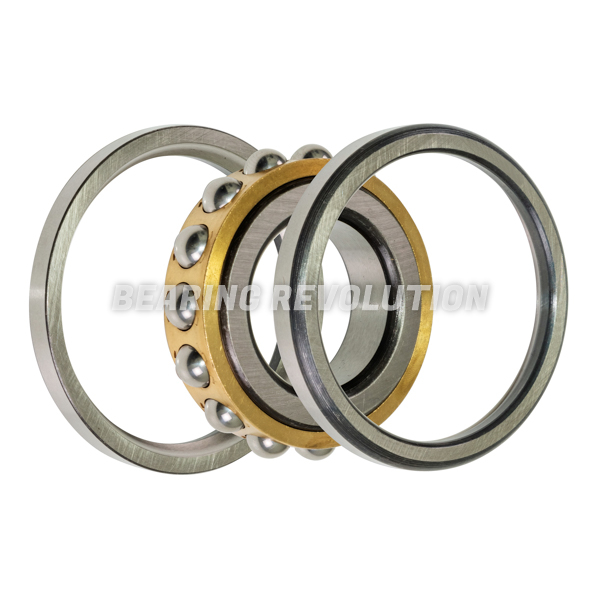

Standard series four point angular contact ball bearing with a split outer race and C3 clearance from our Budget range. 85mm ID, 150mm OD and 28mm width.
Our budget range is manufactured to International standards and represents great value for money.
Please use this form for enquiries and pricing.
Specifications for Q 217 C3 | |
| Reference | Q 217 C3 |
| Brand | Budget |
| Inside Diameter | 85mm |
| Outside Diameter | 150mm |
| Width | 28mm |
| Clearance | C3 |
| Weight (KG) | 2.28 |

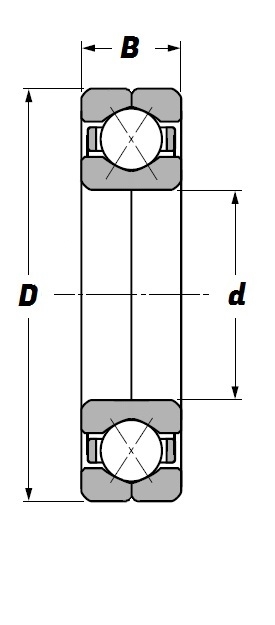

Schematic for Q 217 C3 | |
| B | 28mm |
| d | 85mm |
| D | 150mm |
