Q 309

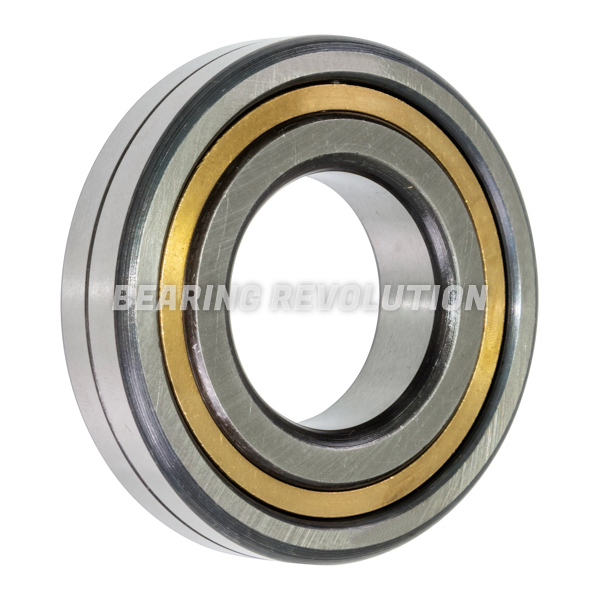

FOUR-POINT CONTACT BALL BEARING WITH A 45MM BORE - BRASS CAGE - PREMIUM RANGE
Medium series four point angular contact ball bearing with a split outer race from our Premium range. 45mm ID, 100mm OD and 25mm width.
Also known as QB 45, QB 45
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for Q 309 | |
| Reference | Q 309 |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Width | 25mm |
| Weight (KG) | 1.03 |

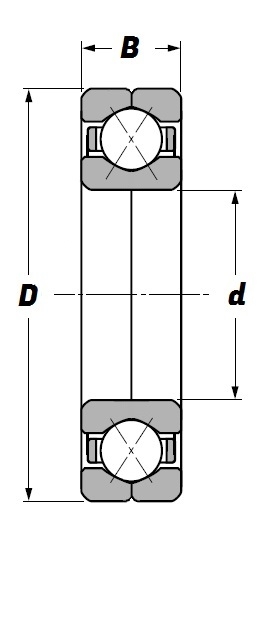

Schematic for Q 309 | |
| B | 25mm |
| d | 45mm |
| D | 100mm |
