Q 324 C3

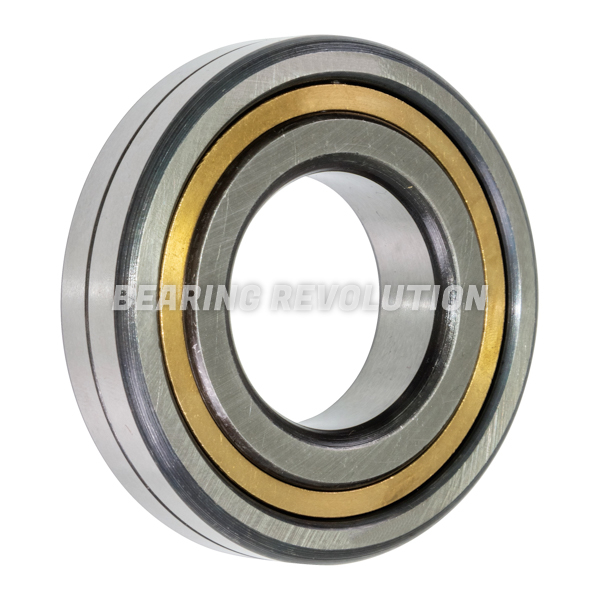

FOUR-POINT CONTACT BALL BEARING WITH A 120MM BORE - BRASS CAGE - BUDGET RANGE

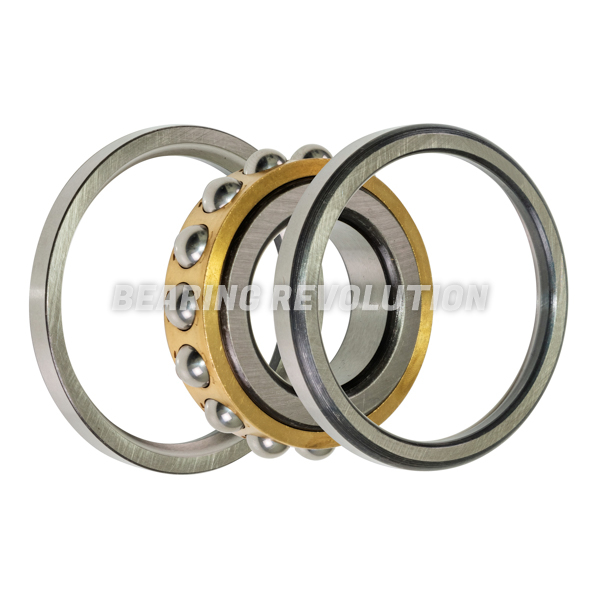

Medium series four point angular contact ball bearing with a split outer race and C3 clearance from our Budget range. 120mm ID, 260mm OD and 55mm width.
Our budget range is manufactured to International standards and represents great value for money.
Please use this form for enquiries and pricing.
Specifications for Q 324 C3 | |
| Reference | Q 324 C3 |
| Brand | Budget |
| Inside Diameter | 120mm |
| Outside Diameter | 260mm |
| Width | 55mm |
| Clearance | C3 |
| Weight (KG) | 15.1 |

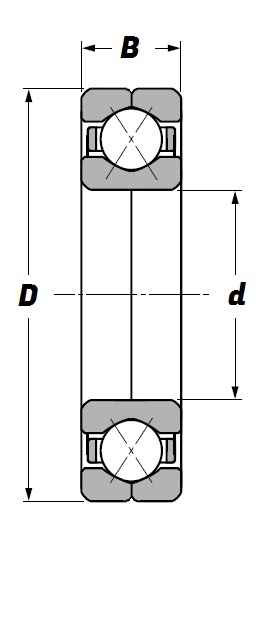

Schematic for Q 324 C3 | |
| B | 55mm |
| d | 120mm |
| D | 260mm |
