Q 326

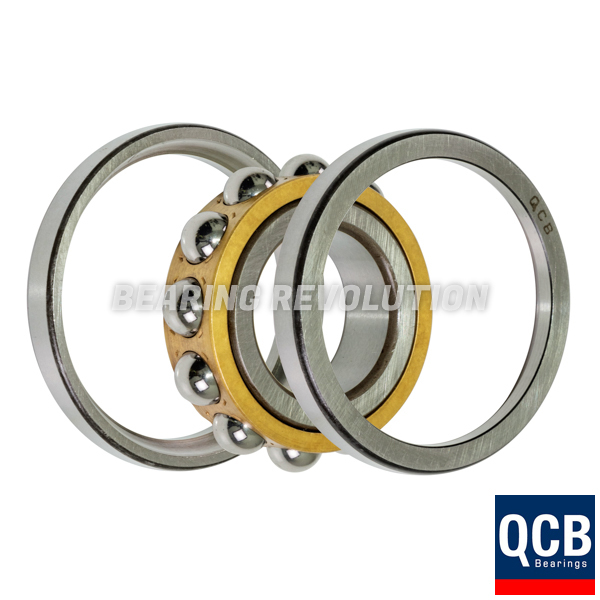

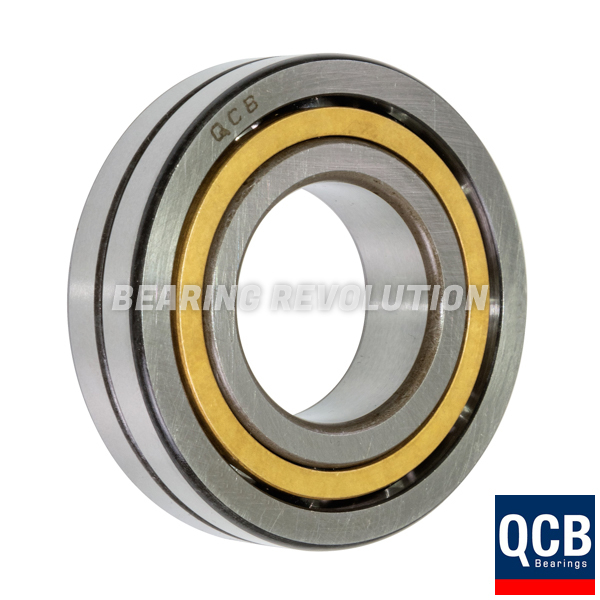

FOUR-POINT CONTACT BALL BEARING WITH A 130MM BORE - BRASS CAGE - SELECT RANGE
Medium series four point angular contact ball bearing with a split outer race from our Select range. 130mm ID, 280mm OD and 58mm width.
Also known as QJF 326, QB 130
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
Please use this form for enquiries and pricing.
Specifications for Q 326 | |
| Reference | Q 326 |
| Brand | Select |
| Inside Diameter | 130mm |
| Outside Diameter | 280mm |
| Width | 58mm |
| Weight (KG) | 18.5 |

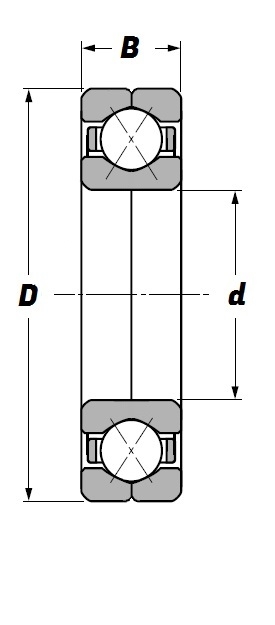

Schematic for Q 326 | |
| B | 58mm |
| d | 130mm |
| D | 280mm |
