QJ 224 N2 C3

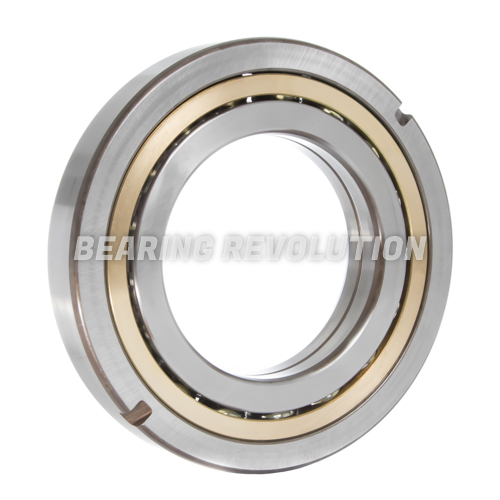

FOUR-POINT CONTACT BALL BEARING WITH A 120MM BORE - BRASS CAGE - PREMIUM RANGE
Standard series four point angular contact ball bearing with a split inner race, C3 clearance and locating slots from our Premium range. 120mm ID, 215mm OD and 40mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for QJ 224 N2 C3 | |
| Reference | QJ 224 N2 C3 |
| Brand | Premium |
| Inside Diameter | 120mm |
| Outside Diameter | 215mm |
| Width | 40mm |
| Clearance | C3 |
| Weight (KG) | 6.49 |
Schematic for QJ 224 N2 C3 | |
| B | 40mm |
| d | 120mm |
| D | 215mm |
