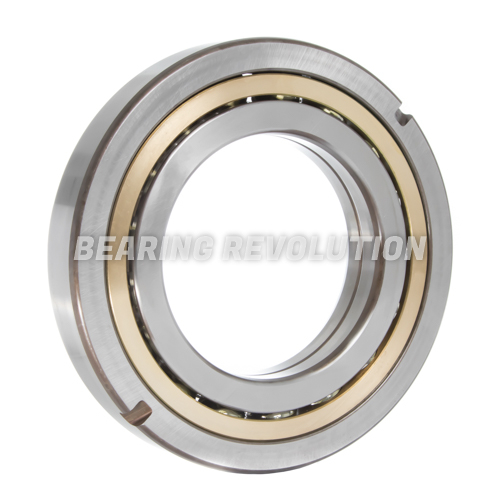

QJ 234 N2 C3
FOUR-POINT CONTACT BALL BEARING WITH A 170MM BORE - BRASS CAGE - BUDGET RANGE
Standard series four point angular contact ball bearing with a split inner race, C3 clearance and locating slots from our Budget range. 170mm ID, 310mm OD and 52mm width.
Our budget range is manufactured to International standards and represents great value for money.
Please use this form for enquiries and pricing.
Specifications for QJ 234 N2 C3 | |
| Reference | QJ 234 N2 C3 |
| Brand | Budget |
| Inside Diameter | 170mm |
| Outside Diameter | 310mm |
| Width | 52mm |
| Clearance | C3 |
| Weight (KG) | 18.2 |
Schematic for QJ 234 N2 C3 | |
| B | 52mm |
| d | 170mm |
| D | 310mm |
