SB 207 21

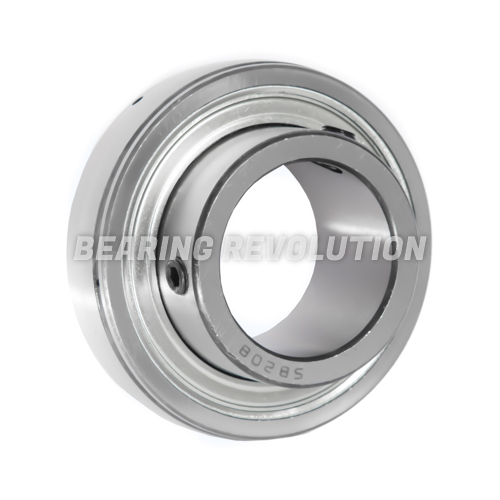

BEARING INSERT WITH A 1.5/16 INCH BORE - TR BRAND
Flat Back 'SB Type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. ID 1.5/16", OD 72mm, width 17mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1235 1.5/16, 12351.5/16, SB20721
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£34.37 (£41.24 inc VAT)
- 5 - 9£32.66 (£39.19 inc VAT)
- 10 +£30.94 (£37.13 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SB 207 21 | |
| Reference | 1235 1.5/16 |
| Brand | Budget |
| Inside Diameter | 1.5/16" |
| Outside Diameter | 72mm |
| Width | 17mm |
| Dyn | 25700 |
| Stat | 15200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.41 |

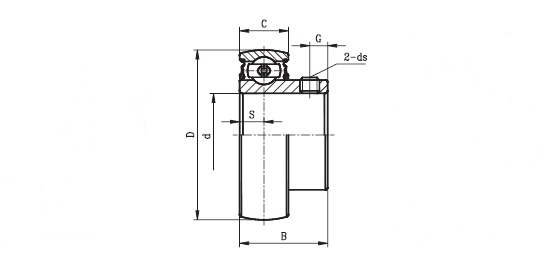

Schematic for SB 207 21 | |
| B | 32mm |
| C | 17mm |
| d | 1.5/16" |
| D | 72mm |
| ds | M6x1 |
| G | 6.5mm |
| h | 5.7mm |
| KG | 0.45 |
| S | 8.5mm |
