SBF 205 - BEARING UNIT

BR Stock No. B-SF 25 A | Brand: TR | Mfr. Part No. SF 25 A

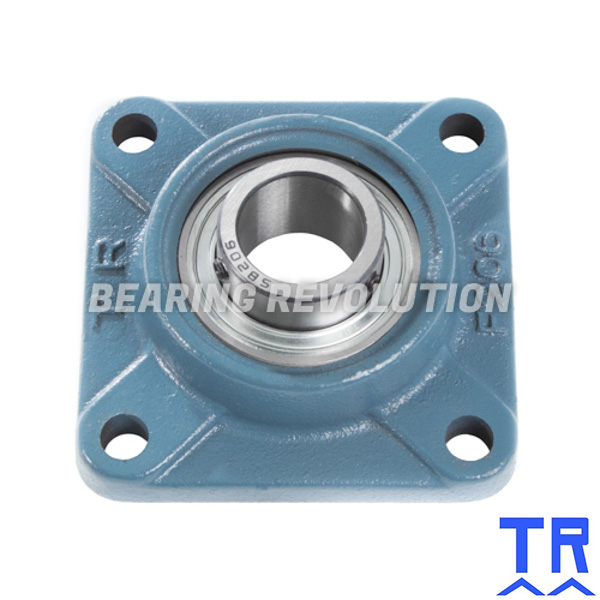

Cast Iron Four Bolt Square Flanged Unit complete with flat back bearing insert from our TR range.

Also known as SF 25 A, SBF205, SF25A

Specifications for SBF 205 - Bearing Unit
Reference	SF 25 A
Brand	TR
Inside Diameter	25mm
Bolt	M10
Weight (KG)	0.75

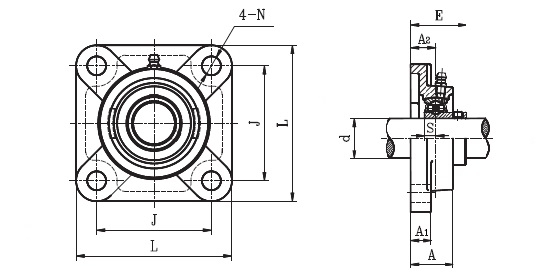

Schematic for SBF 205 - Bearing Unit
A	27mm
A1	13mm
A2	16mm
E	35.5mm
J	70mm
KG	0.75
L	95mm
N	11.5mm
S	7.5mm
