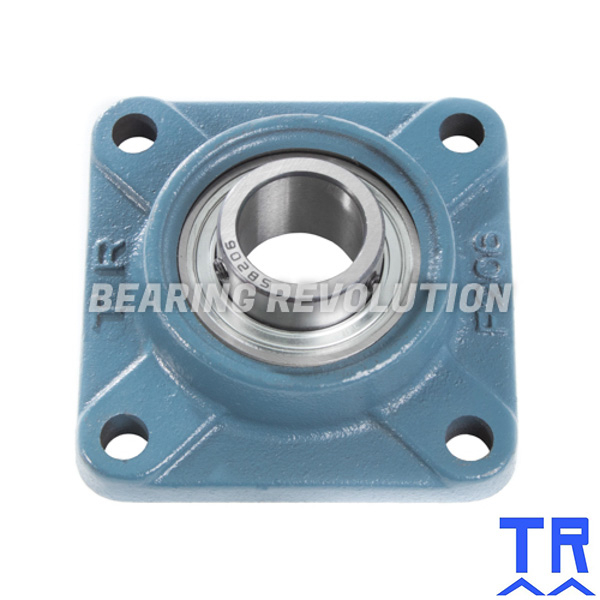

SBF 208-24 - BEARING UNIT

BR Stock No. B-SF 1.1/2 A | Brand: TR | Mfr. Part No. SF 1.1/2 A

Cast Iron Four Bolt Square Flanged Unit complete with flat back bearing insert from our TR range.

Also known as SBF208-24, SF 1.1/2 A, SBF20824, SF1.1/2A

Specifications for SBF 208-24 - Bearing Unit
Reference	SF 1.1/2 A
Brand	TR
Inside Diameter	1.1/2"
Bolt	M12
Weight (KG)	1.66

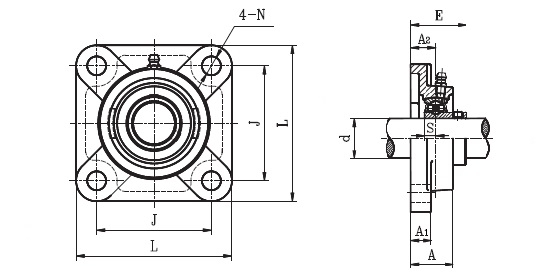

Schematic for SBF 208-24 - Bearing Unit
A	36mm
A1	15mm
A2	21mm
E	46mm
J	102mm
KG	1.66
L	130mm
N	14mm
S	9mm
