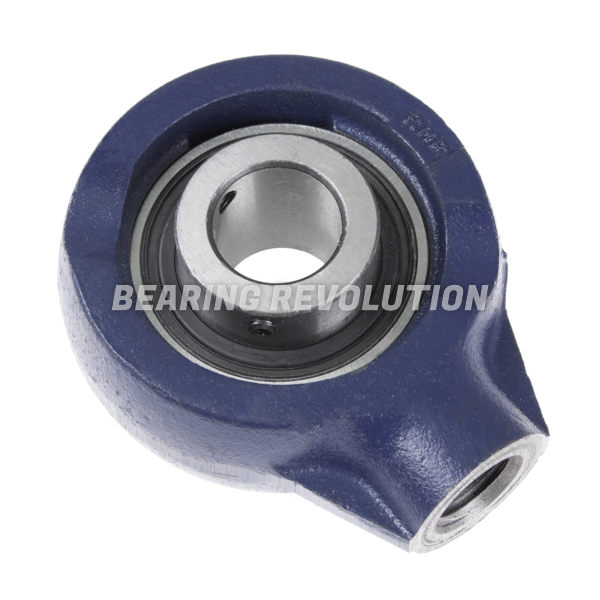

SCHB 60, 'PREMIUM' HANGER BEARING UNIT WITH A 60MM BORE.
Cast Iron Hanger Bearing Unit with BSP thread complete with full width bearing insert, from our Premium Range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£245.09 (£294.11 inc VAT)
- 5 +£232.82 (£279.38 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SCHB 60, 'Premium' Hanger Bearing Unit with a 60mm bore. | |
| Reference | SCHB 60 |
| Brand | Premium |
| Inside Diameter | 60mm |
| Weight (KG) | 3.5 |
Schematic for SCHB 60, 'Premium' Hanger Bearing Unit with a 60mm bore. | |
| A | 58.5mm |
| A1 | 30.94mm |
| B | 65.07mm |
| F | 29mm |
| G | 1.1/4" BSP |
| H | 175mm |
| H1 | 101.6mm |
| KG | 3.5 |
| L | 146.5mm |
| s | 25.45mm |
