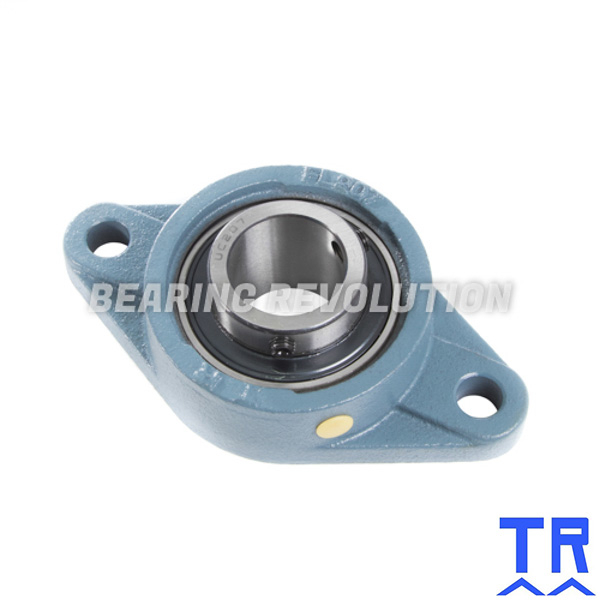

SFT 1 UCFL205-16 - OVAL FLANGE UNIT WITH A 1 INCH BORE - TR BRAND
UCFL205-16 Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£32.57 (£39.08 inc VAT)
- 5 - 9£30.94 (£37.13 inc VAT)
- 10 +£29.31 (£35.17 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 1 UCFL205-16 - Oval Flange Unit with a 1 inch bore - TR Brand | |
| Reference | SFT 1 |
| Brand | TR |
| Inside Diameter | 1" |
| Bolt | M10 |
| Weight (KG) | 0.61 |

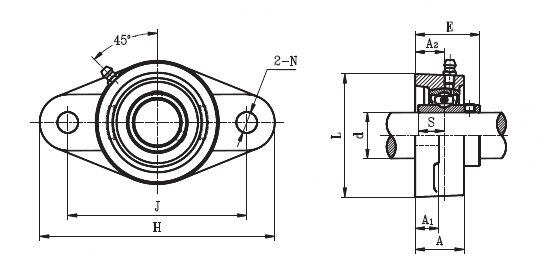

Schematic for SFT 1 UCFL205-16 - Oval Flange Unit with a 1 inch bore - TR Brand | |
| A | 27mm |
| A1 | 13mm |
| A2 | 16mm |
| A4 | 40mm |
| E | 35.7mm |
| H | 130mm |
| J | 99mm |
| KG | 0.61 |
| L | 68mm |
| N | 11.5mm |
| S | 14.3mm |
