SFT 16 ( UCFL 202 - 16MM ) - OVAL FLANGE UNIT WITH A 16MM BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£25.78 (£30.94 inc VAT)
- 5 - 9£24.48 (£29.38 inc VAT)
- 10 +£23.21 (£27.85 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 16 ( UCFL 202 - 16mm ) - Oval Flange Unit with a 16mm bore - TR Brand | |
| Reference | SFT 16 |
| Brand | TR |
| Inside Diameter | 16mm |
| Bolt | M10 |
| Weight (KG) | 0.45 |

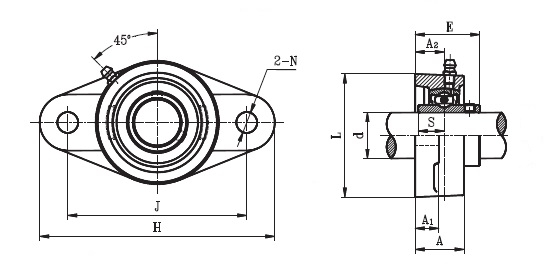

Schematic for SFT 16 ( UCFL 202 - 16mm ) - Oval Flange Unit with a 16mm bore - TR Brand | |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 15mm |
| A4 | 37.5mm |
| E | 33.3mm |
| H | 113mm |
| J | 76.5mm |
| KG | 0.45 |
| L | 57mm |
| N | 11.5mm |
| S | 12.7mm |
