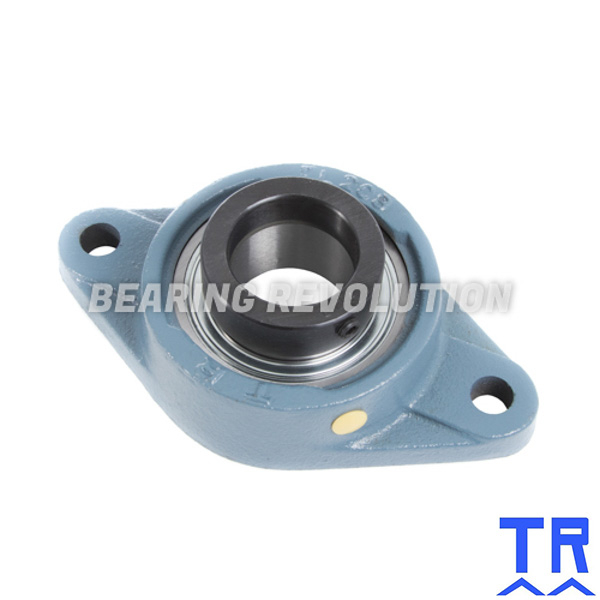

SFT 1.1/4 EC ( SAFL 207 20 ) - OVAL FLANGE UNIT WITH A 1.1/4 INCH BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£46.76 (£56.11 inc VAT)
- 5 - 9£44.42 (£53.30 inc VAT)
- 10 +£42.09 (£50.51 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 1.1/4 EC ( SAFL 207 20 ) - Oval Flange Unit with a 1.1/4 inch bore - TR Brand | |
| Reference | SFT 1.1/4 EC |
| Brand | TR |
| Inside Diameter | 1.1/4" |
| Bolt | M12 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 1.18 |

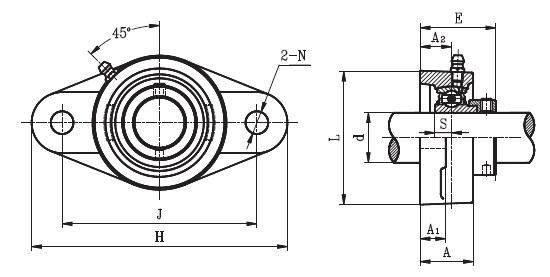

Schematic for SFT 1.1/4 EC ( SAFL 207 20 ) - Oval Flange Unit with a 1.1/4 inch bore - TR Brand | |
| A | 34mm |
| A1 | 14mm |
| A2 | 19mm |
| E | 48.4mm |
| H | 161mm |
| J | 130mm |
| KG | 1.18 |
| L | 90mm |
| N | 14mm |
| S | 9.5mm |
