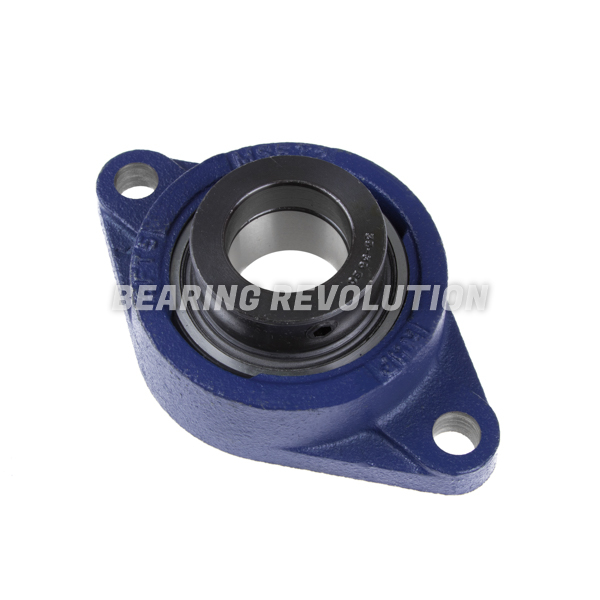

SFT 1.3/16 EC, 'PREMIUM' OVAL FLANGE UNIT WITH A 1.3/16 INCH BORE.
Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert and eccentric collar lock from our Premium Range. Also known as SAFL 206 19.
Also known as SAFL 206 19
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£78.66 (£94.39 inc VAT)
- 5 +£74.73 (£89.68 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 1.3/16 EC, 'Premium' Oval Flange unit with a 1.3/16 inch bore. | |
| Reference | SFT 1.3/16 EC |
| Brand | Premium |
| Inside Diameter | 1.3/16" |
| Type | Eccentric Collar Lock |
| Weight (KG) | 1.1 |

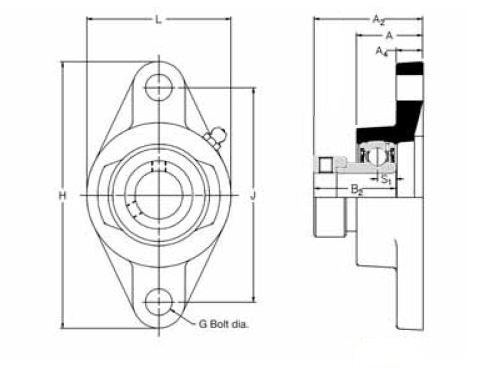

Schematic for SFT 1.3/16 EC, 'Premium' Oval Flange unit with a 1.3/16 inch bore. | |
| A | 29.8mm |
| G | 10mm |
| H | 141.3mm |
| J | 116.5mm |
| KG | 1.1 |
| L | 82.6mm |
