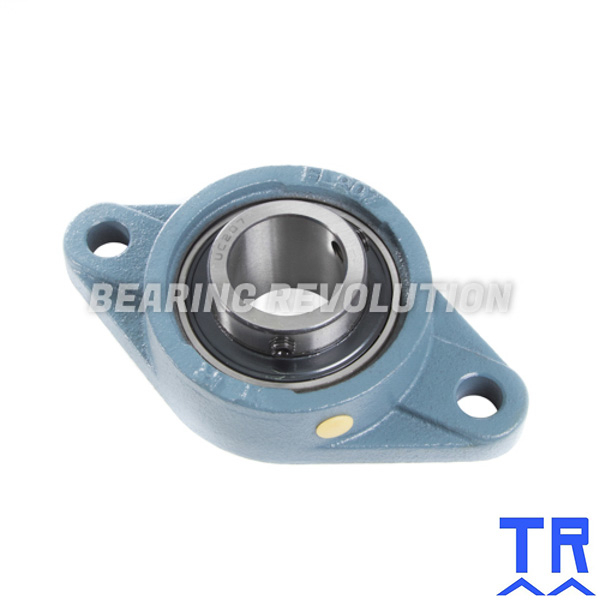

SFT 2 R ( UCFL 210 32 ) - OVAL FLANGE UNIT WITH A 2 INCH BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£68.93 (£82.72 inc VAT)
- 5 - 9£65.49 (£78.59 inc VAT)
- 10 +£62.04 (£74.45 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 2 R ( UCFL 210 32 ) - Oval Flange Unit with a 2 inch bore - TR Brand | |
| Reference | SFT 2 R |
| Brand | TR |
| Inside Diameter | 2" |
| Bolt | M16 |
| Weight (KG) | 2.16 |

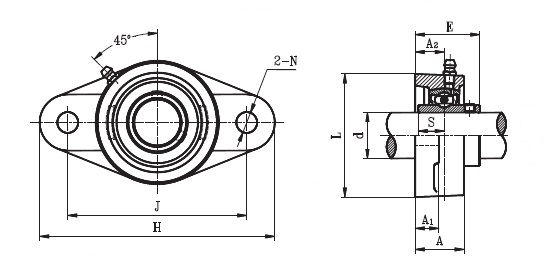

Schematic for SFT 2 R ( UCFL 210 32 ) - Oval Flange Unit with a 2 inch bore - TR Brand | |
| A | 40mm |
| A1 | 16mm |
| A2 | 22mm |
| A4 | 60mm |
| E | 54.6mm |
| H | 197mm |
| J | 157mm |
| KG | 2.16 |
| L | 115mm |
| N | 18mm |
| S | 19mm |
