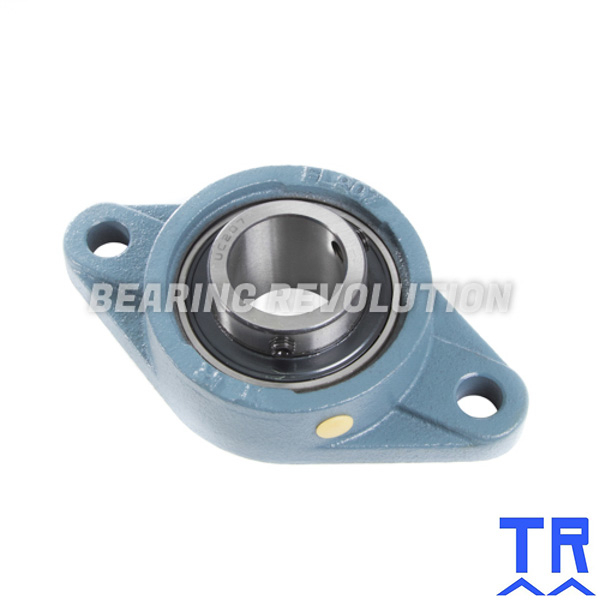

SFT 20 ( UCFL 204 ) - OVAL FLANGE UNIT WITH A 20MM BORE - TR BRAND

BR Stock No. B-SFT 20 | Brand: TR | Mfr. Part No. SFT 20

Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our TR range.

Specifications for SFT 20 ( UCFL 204 ) - Oval Flange Unit with a 20mm bore - TR Brand
Reference	SFT 20
Brand	TR
Inside Diameter	20mm
Bolt	M10
Weight (KG)	0.42

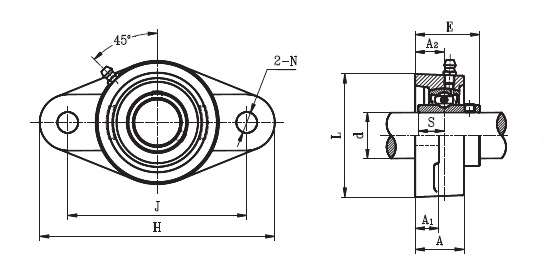

Schematic for SFT 20 ( UCFL 204 ) - Oval Flange Unit with a 20mm bore - TR Brand
A	25.5mm
A1	11mm
A2	15mm
A4	37.5mm
E	33.3mm
H	113mm
J	90mm
KG	0.42
L	60mm
N	11.5mm
S	12.7mm
