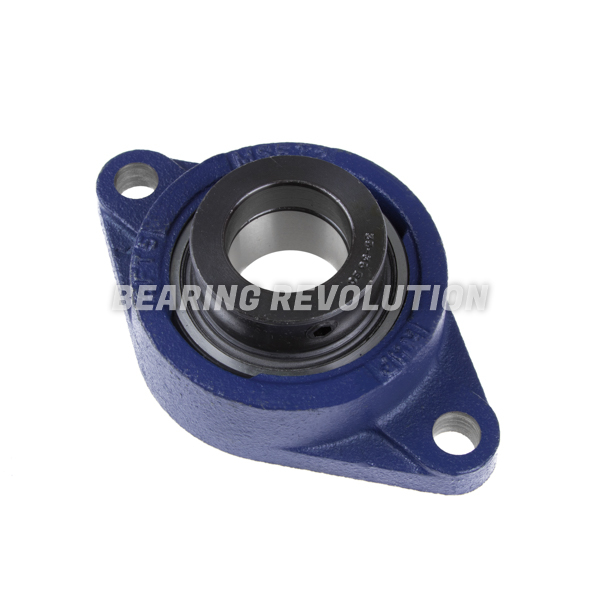

SFT 25 EC, 'PREMIUM' OVAL FLANGE UNIT WITH A 25MM BORE.
Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert and eccentric collar lock from our Premium Range. Also known as SAFL 205.
Also known as SAFL 205
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£58.73 (£70.48 inc VAT)
- 5 +£55.79 (£66.95 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 25 EC, 'Premium' Oval Flange unit with a 25mm bore. | |
| Reference | SFT 25 EC |
| Brand | Premium |
| Inside Diameter | 25mm |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.9 |

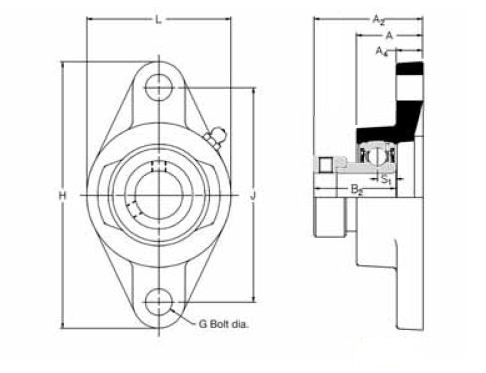

Schematic for SFT 25 EC, 'Premium' Oval Flange unit with a 25mm bore. | |
| A | 28.6mm |
| G | 10mm |
| H | 125.5mm |
| J | 99mm |
| KG | 0.9 |
| L | 70mm |
