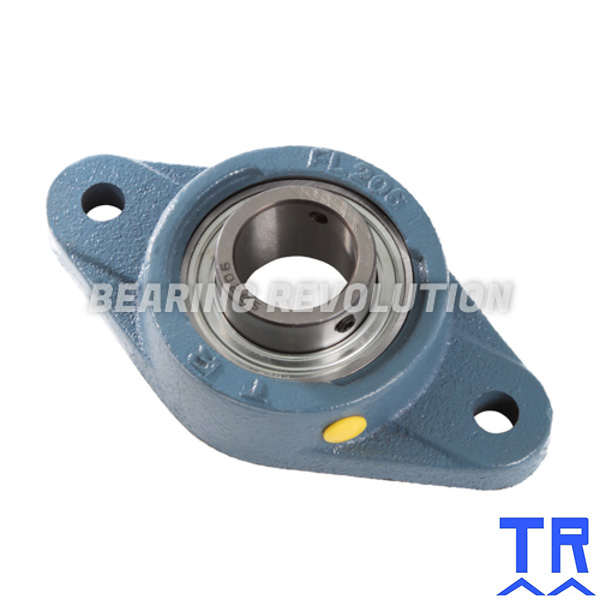

SFT 35 A ( SBFL 207 ) - OVAL FLANGE UNIT WITH A 35MM BORE - TR BRAND

BR Stock No. B-SFT 35 A | Brand: TR | Mfr. Part No. SFT 35 A

Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert from our TR range.

Specifications for SFT 35 A ( SBFL 207 ) - Oval Flange Unit with a 35mm bore - TR Brand
Reference	SFT 35 A
Brand	TR
Inside Diameter	35mm
Bolt	M12
Weight (KG)	1.12

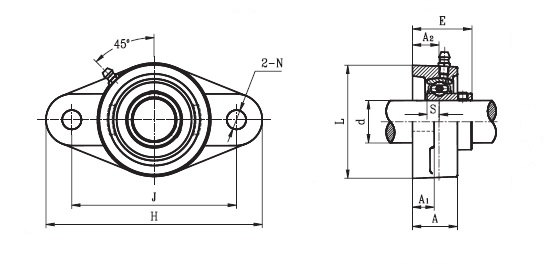

Schematic for SFT 35 A ( SBFL 207 ) - Oval Flange Unit with a 35mm bore - TR Brand
A	34mm
A1	14mm
A2	19mm
E	42.5mm
H	161mm
J	130mm
KG	1.12
L	90mm
N	14mm
S	8.5mm
