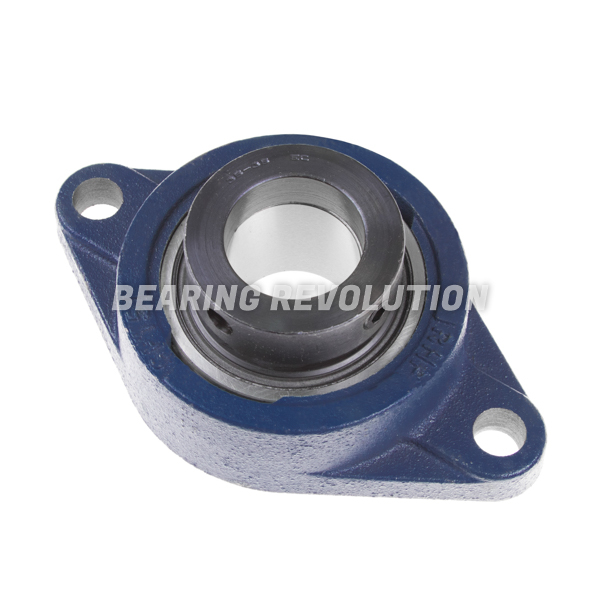

SFT 35 DEC, 'PREMIUM' OVAL FLANGE UNIT WITH A 35MM BORE.
Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert and eccentric collar lock from our Premium Range. Also known as NAFL 207.
Also known as NAFL 207
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£94.92 (£113.90 inc VAT)
- 5 +£90.18 (£108.22 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 35 DEC, 'Premium' Oval Flange unit with a 35mm bore. | |
| Reference | SFT 35 DEC |
| Brand | Premium |
| Inside Diameter | 35mm |
| Type | Eccentric Collar Lock |
| Weight (KG) | 1.4 |

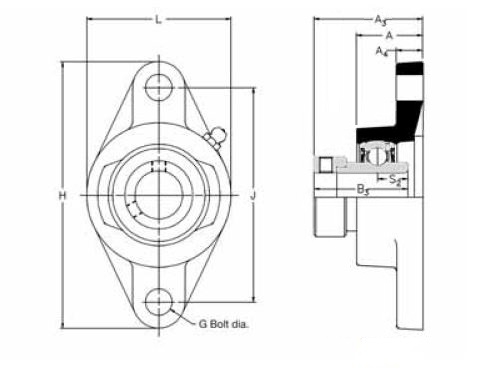

Schematic for SFT 35 DEC, 'Premium' Oval Flange unit with a 35mm bore. | |
| A | 31.4mm |
| G | 12mm |
| H | 155.5mm |
| J | 130mm |
| KG | 1.4 |
| L | 95.5mm |
