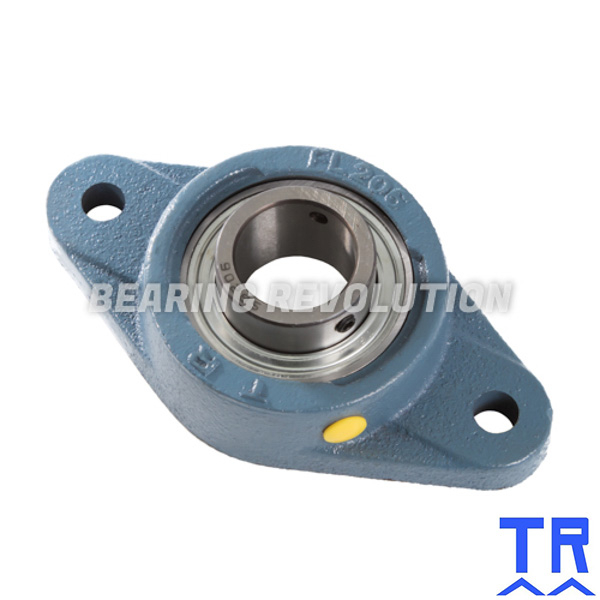

SFT 40 A ( SBFL 208 ) - OVAL FLANGE UNIT WITH A 40MM BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£48.06 (£57.67 inc VAT)
- 5 - 9£45.66 (£54.79 inc VAT)
- 10 +£43.24 (£51.89 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 40 A ( SBFL 208 ) - Oval Flange Unit with a 40mm bore - TR Brand | |
| Reference | SFT 40 A |
| Brand | TR |
| Inside Diameter | 40mm |
| Bolt | M12 |
| Weight (KG) | 1.4 |

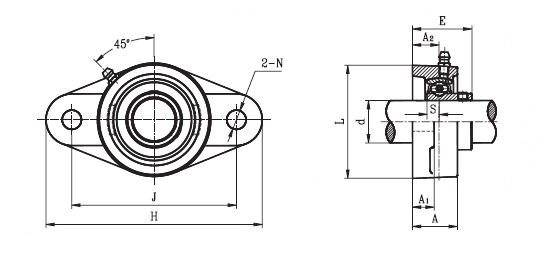

Schematic for SFT 40 A ( SBFL 208 ) - Oval Flange Unit with a 40mm bore - TR Brand | |
| A | 36mm |
| A1 | 14mm |
| A2 | 21mm |
| E | 46mm |
| H | 175mm |
| J | 144mm |
| KG | 1.4 |
| L | 100mm |
| N | 14mm |
| S | 9mm |
