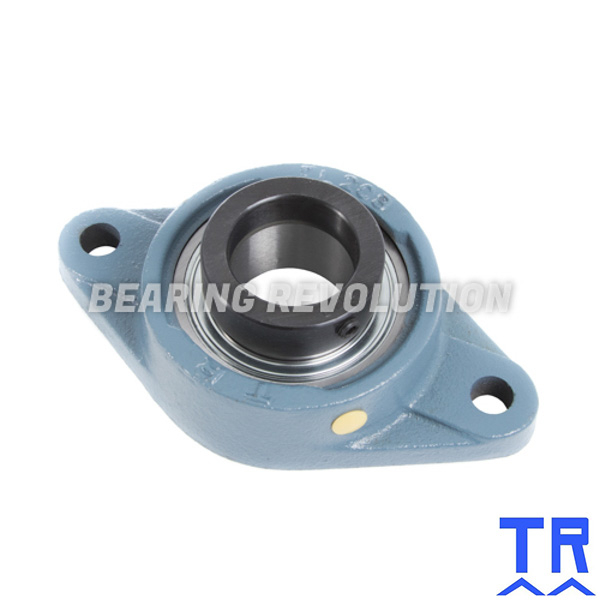

SFT 45 EC ( SAFL 209 ) - OVAL FLANGE UNIT WITH A 45MM BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£60.36 (£72.43 inc VAT)
- 5 - 9£57.35 (£68.82 inc VAT)
- 10 +£54.32 (£65.18 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 45 EC ( SAFL 209 ) - Oval Flange Unit with a 45mm bore - TR Brand | |
| Reference | SFT 45 EC |
| Brand | TR |
| Inside Diameter | 45mm |
| Bolt | M16 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 1.85 |

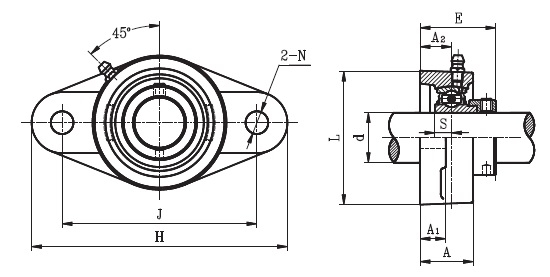

Schematic for SFT 45 EC ( SAFL 209 ) - Oval Flange Unit with a 45mm bore - TR Brand | |
| A | 38mm |
| A1 | 16mm |
| A2 | 22mm |
| E | 54.7mm |
| H | 188mm |
| J | 148mm |
| KG | 1.85 |
| L | 108mm |
| N | 18mm |
| S | 11mm |
