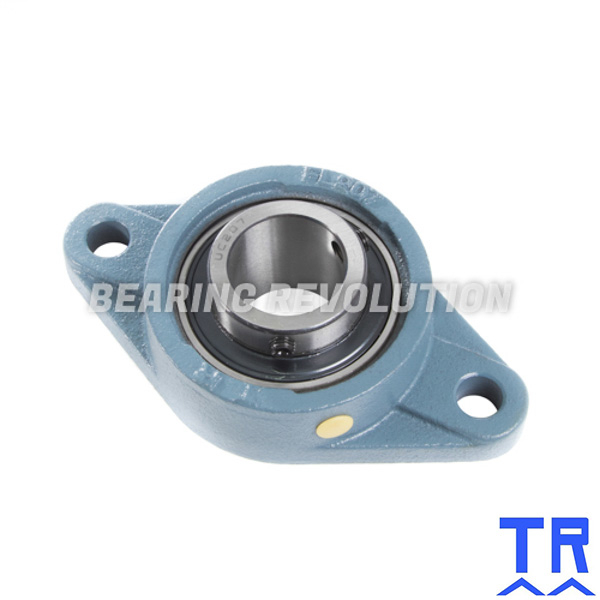

SFT .3/4 ( UCFL 204 12 ) - OVAL FLANGE UNIT WITH A 3/4 INCH BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£10.11 (£12.13 inc VAT)
- 5 - 9£9.60 (£11.52 inc VAT)
- 10 +£9.10 (£10.92 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT .3/4 ( UCFL 204 12 ) - Oval Flange Unit with a 3/4 inch bore - TR Brand | |
| Reference | SFT .3/4 |
| Brand | TR |
| Inside Diameter | .3/4" |
| Bolt | M10 |
| Weight (KG) | 0.42 |

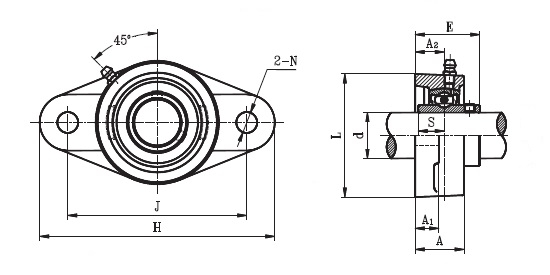

Schematic for SFT .3/4 ( UCFL 204 12 ) - Oval Flange Unit with a 3/4 inch bore - TR Brand | |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 15mm |
| A4 | 37.5mm |
| E | 33.3mm |
| H | 113mm |
| J | 90mm |
| KG | 0.42 |
| L | 60mm |
| N | 11.5mm |
| S | 12.7mm |
