SFT .7/8 ( UCFL 205 14 ) - OVAL FLANGE UNIT WITH A 7/8 INCH BORE - TR BRAND

BR Stock No. B-SFT .7/8 | Brand: TR | Mfr. Part No. SFT .7/8

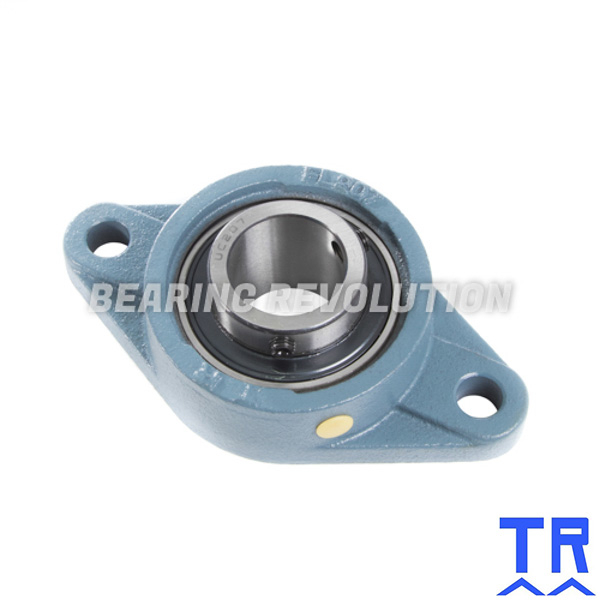

Cast Iron Two Bolt Oval Flange Unit complete with full width bearing insert from our TR range.

Specifications for SFT .7/8 ( UCFL 205 14 ) - Oval Flange Unit with a 7/8 inch bore - TR Brand
Reference	SFT .7/8
Brand	TR
Inside Diameter	.7/8"
Bolt	M10
Weight (KG)	0.61

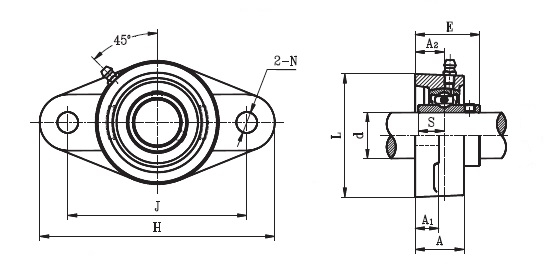

Schematic for SFT .7/8 ( UCFL 205 14 ) - Oval Flange Unit with a 7/8 inch bore - TR Brand
A	27mm
A1	13mm
A2	16mm
A4	40mm
E	35.7mm
H	130mm
J	99mm
KG	0.61
L	68mm
N	11.5mm
S	14.3mm
