Please note photos are for illustration purposes only

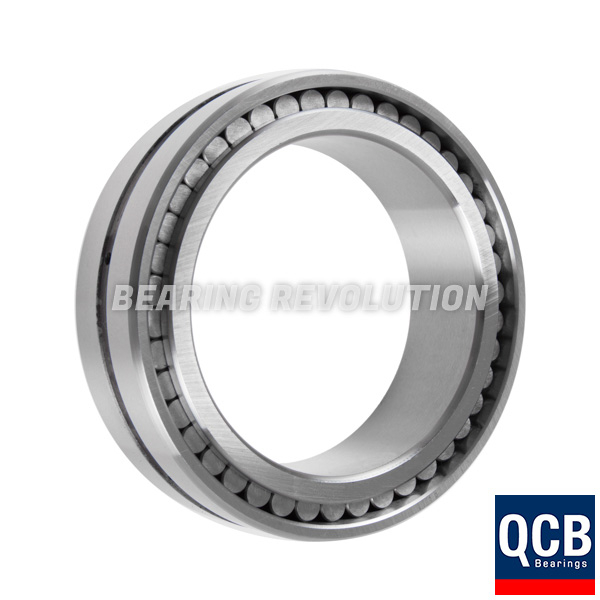

SL 02 4920, FULL COMPLEMENT CYLINDRICAL ROLLER BEARING WITH A 100MM BORE - SELECT RANGE

Name: SL 02 4920, Full Complement Cylindrical Roller Bearing with a 100mm bore - Select Range
Brand: Select
Price: 373.30 GBP
Availability: InStock

BR Stock No. S-SL 02 4920 | Brand: Select | Mfr. Part No. SL 02 4920

Double row non-locating type cylindrical roller bearing with a full complement of rollers from our Select range. Outer ring split axially and held together by retaining clips. Allows the outer and inner rings to be displaced in both axial directions with respect to each other. Supports radial forces. 100mm ID, 140mm OD, 40mm width.

Also known as NNCL 4920 V

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£311.08 (£373.30 inc VAT)
5 - 9£295.52 (£354.62 inc VAT)
10 +£279.97 (£335.96 inc VAT)
Bulk Order PricesENQUIRE

SL 02 4920, Full Complement Cylindrical Roller Bearing with a 100mm bore - Select Range Schematic

Specifications for SL 02 4920, Full Complement Cylindrical Roller Bearing with a 100mm bore - Select Range
Reference	SL 02 4920
Brand	Select
Inside Diameter	100mm
Outside Diameter	140mm
Width	40mm
Weight (KG)	1.9

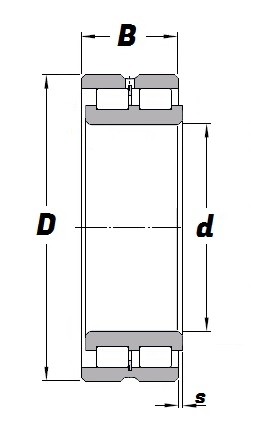

Schematic for SL 02 4920, Full Complement Cylindrical Roller Bearing with a 100mm bore - Select Range
B	40mm
d	100mm
D	140mm
s	2mm
