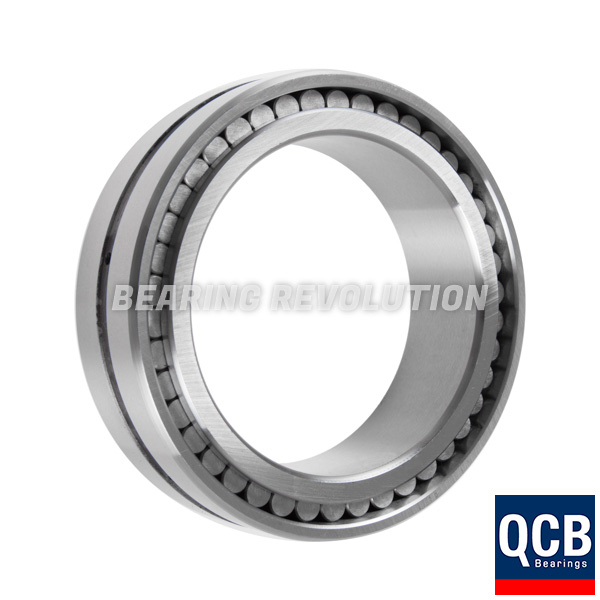

Please note photos are for illustration purposes only

SL 02 4932, FULL COMPLEMENT CYLINDRICAL ROLLER BEARING WITH A 160MM BORE - SELECT RANGE

Name: SL 02 4932, Full Complement Cylindrical Roller Bearing with a 160mm bore - Select Range
Brand: Select
Price: 888.35 GBP
Availability: InStock

BR Stock No. S-SL 02 4932 | Brand: Select | Mfr. Part No. SL 02 4932

Double row non-locating type cylindrical roller bearing with a full complement of rollers from our Select range. Outer ring split axially and held together by retaining clips. Allows the outer and inner rings to be displaced in both axial directions with respect to each other. Supports radial forces. 160mm ID, 220mm OD, 60mm width.

Also known as NNCL 4932 V

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£740.29 (£888.35 inc VAT)
5 - 9£703.27 (£843.92 inc VAT)
10 +£666.26 (£799.51 inc VAT)
Bulk Order PricesENQUIRE

SL 02 4932, Full Complement Cylindrical Roller Bearing with a 160mm bore - Select Range Schematic

Specifications for SL 02 4932, Full Complement Cylindrical Roller Bearing with a 160mm bore - Select Range
Reference	SL 02 4932
Brand	Select
Inside Diameter	160mm
Outside Diameter	220mm
Width	60mm
Weight (KG)	6.55

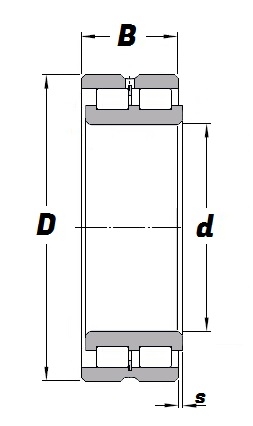

Schematic for SL 02 4932, Full Complement Cylindrical Roller Bearing with a 160mm bore - Select Range
B	60mm
d	160mm
D	220mm
s	4mm
