SL 04 5034 PP, FULL COMPLEMENT CYLINDRICAL ROLLER BEARING WITH A 170MM BORE - SELECT RANGE

Name: SL 04 5034 PP, Full Complement Cylindrical Roller Bearing with a 170mm bore - Select Range
Brand: Select
Price: 1,908.04 GBP
Availability: InStock

BR Stock No. S-SL 04 5034 PP | Brand: Select | Mfr. Part No. SL 04 5034 PP

Sealed double row cylindrical roller bearing with a full complement of rollers and snap ring grooves (snap rings can be ordered separately if required) from our Select range.

Also known as NNF 5034 ADA 2LSV

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£1,590.03 (£1,908.04 inc VAT)
5 - 9£1,510.53 (£1,812.64 inc VAT)
10 +£1,431.03 (£1,717.24 inc VAT)
Bulk Order PricesENQUIRE

SL 04 5034 PP, Full Complement Cylindrical Roller Bearing with a 170mm bore - Select Range Schematic

Specifications for SL 04 5034 PP, Full Complement Cylindrical Roller Bearing with a 170mm bore - Select Range
Reference	SL 04 5034 PP
Brand	Select
Inside Diameter	170mm
Outside Diameter	260mm
Width	122mm
Seals / Shields	Sealed
Weight (KG)	22.6

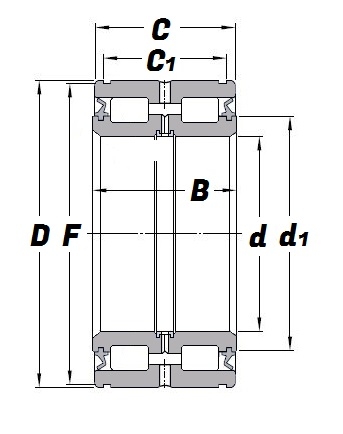

Schematic for SL 04 5034 PP, Full Complement Cylindrical Roller Bearing with a 170mm bore - Select Range
B	122mm
C	121mm
C1	107.2mm
d	170mm
D	260mm
d1	201mm
F	254mm
