SL 04 5036 PP, FULL COMPLEMENT CYLINDRICAL ROLLER BEARING WITH A 180MM BORE - SELECT RANGE

Name: SL 04 5036 PP, Full Complement Cylindrical Roller Bearing with a 180mm bore - Select Range
Brand: Select
Price: 2457.97 GBP
Availability: InStock

BR Stock No. S-SL 04 5036 PP | Brand: Select | Mfr. Part No. SL 04 5036 PP

Sealed double row cylindrical roller bearing with a full complement of rollers and snap ring grooves (snap rings can be ordered separately if required) from our Select range.

Also known as NNF 5036 ADA 2LSV

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£2,048.31 (£2,457.97 inc VAT)
5 - 9£1,945.90 (£2,335.08 inc VAT)
10 +£1,843.47 (£2,212.16 inc VAT)
Bulk Order PricesENQUIRE

SL 04 5036 PP, Full Complement Cylindrical Roller Bearing with a 180mm bore - Select Range Schematic

Specifications for SL 04 5036 PP, Full Complement Cylindrical Roller Bearing with a 180mm bore - Select Range
Reference	SL 04 5036 PP
Brand	Select
Inside Diameter	180mm
Outside Diameter	280mm
Width	136mm
Seals / Shields	Sealed
Weight (KG)	30.1

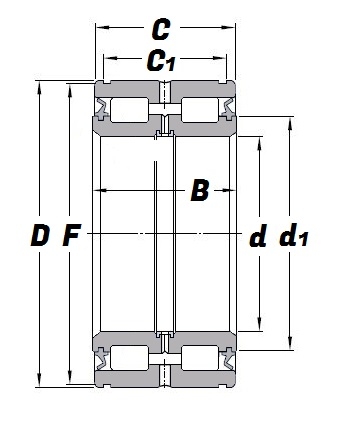

Schematic for SL 04 5036 PP, Full Complement Cylindrical Roller Bearing with a 180mm bore - Select Range
B	136mm
C	135mm
C1	118.2mm
d	180mm
D	280mm
d1	218.5mm
F	274mm
