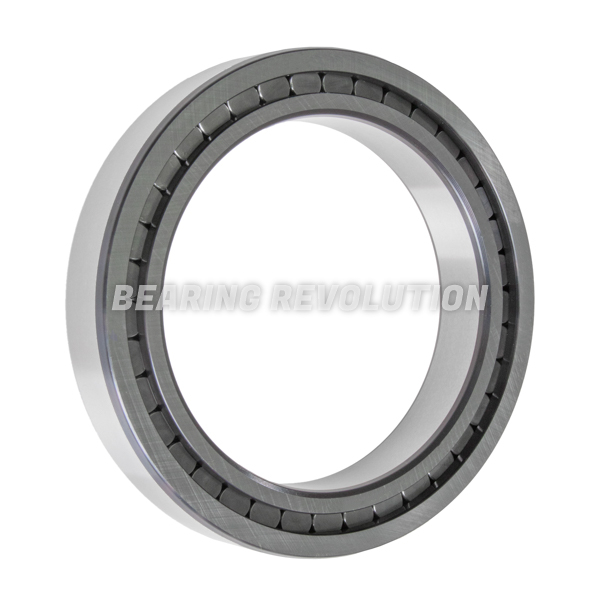

SL 18 2916 C3, FULL COMPLEMENT CYLINDRICAL ROLLER BEARING WITH A 80MM BORE - BUDGET RANGE
Single row semi-locating type cylindrical roller bearing with a full complement of rollers from our Budget range. Supports radial forces as well as limited axial forces in one direction. Allows the outer and inner rings to be displaced in one axial direction with respect to each other. 80mm ID, 110mm OD, 19mm width.
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£101.55 (£121.86 inc VAT)
- 5 - 9£96.48 (£115.78 inc VAT)
- 10 +£91.40 (£109.68 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SL 18 2916 C3, Full Complement Cylindrical Roller Bearing with a 80mm bore - Budget Range | |
| Reference | SL 18 2916 C3 |
| Brand | Budget |
| Inside Diameter | 80mm |
| Outside Diameter | 110mm |
| Width | 19mm |
| Clearance | C3 |
| Weight (KG) | 0.55 |

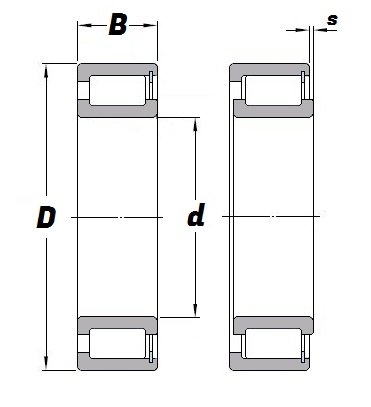

Schematic for SL 18 2916 C3, Full Complement Cylindrical Roller Bearing with a 80mm bore - Budget Range | |
| B | 19mm |
| d | 80mm |
| D | 110mm |
| s | 1mm |
