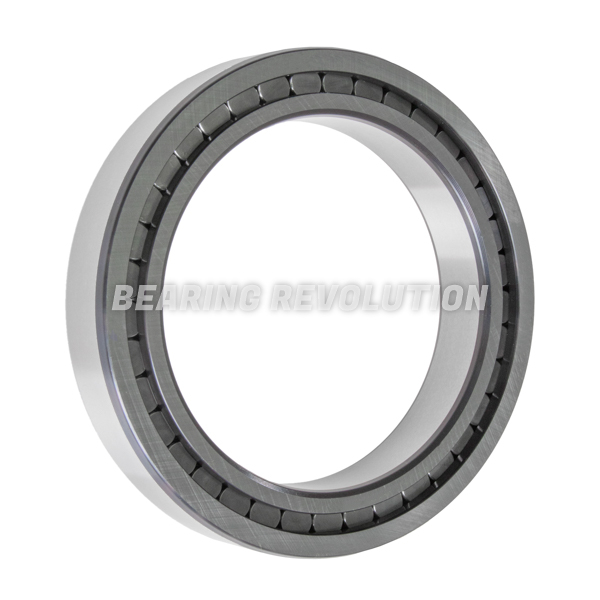

SL 18 2920, FULL COMPLEMENT CYLINDRICAL ROLLER BEARING WITH A 100MM BORE - BUDGET RANGE
Single row semi-locating type cylindrical roller bearing with a full complement of rollers from our Budget range. Supports radial forces as well as limited axial forces in one direction. Allows the outer and inner rings to be displaced in one axial direction with respect to each other. 100mm ID, 140mm OD, 24mm width.
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£182.81 (£219.37 inc VAT)
- 5 - 9£173.67 (£208.40 inc VAT)
- 10 +£164.52 (£197.42 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SL 18 2920, Full Complement Cylindrical Roller Bearing with a 100mm bore - Budget Range | |
| Reference | SL 18 2920 |
| Brand | Budget |
| Inside Diameter | 100mm |
| Outside Diameter | 140mm |
| Width | 24mm |
| Weight (KG) | 1.2 |

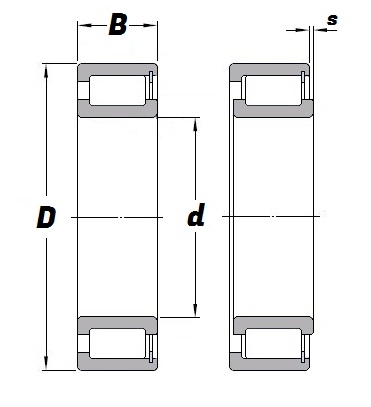

Schematic for SL 18 2920, Full Complement Cylindrical Roller Bearing with a 100mm bore - Budget Range | |
| B | 24mm |
| d | 100mm |
| D | 140mm |
| s | 1.5mm |
