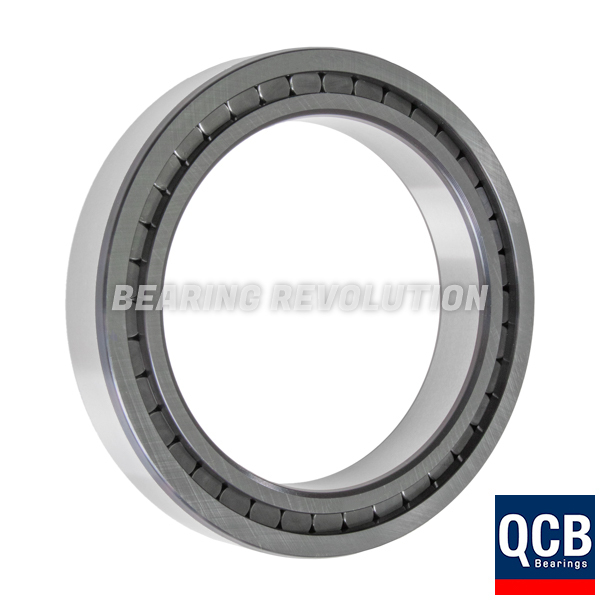

Please note photos are for illustration purposes only

SL 18 2920, FULL COMPLEMENT CYLINDRICAL ROLLER BEARING WITH A 100MM BORE - SELECT RANGE

Name: SL 18 2920, Full Complement Cylindrical Roller Bearing with a 100mm bore - Select Range
Brand: Select
Price: 260.51 GBP
Availability: InStock

BR Stock No. S-SL 18 2920 | Brand: Select | Mfr. Part No. SL 18 2920

Single row semi-locating type cylindrical roller bearing with a full complement of rollers from our Select range. Supports radial forces as well as limited axial forces in one direction. Allows the outer and inner rings to be displaced in one axial direction with respect to each other. 100mm ID, 140mm OD, 24mm width.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£217.09 (£260.51 inc VAT)
5 - 9£206.24 (£247.49 inc VAT)
10 +£195.39 (£234.47 inc VAT)
Bulk Order PricesENQUIRE

SL 18 2920, Full Complement Cylindrical Roller Bearing with a 100mm bore - Select Range Schematic

Specifications for SL 18 2920, Full Complement Cylindrical Roller Bearing with a 100mm bore - Select Range
Reference	SL 18 2920
Brand	Select
Inside Diameter	100mm
Outside Diameter	140mm
Width	24mm
Weight (KG)	1.2

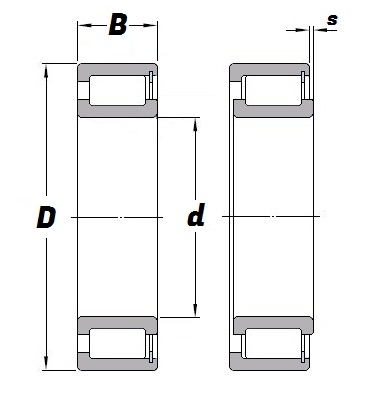

Schematic for SL 18 2920, Full Complement Cylindrical Roller Bearing with a 100mm bore - Select Range
B	24mm
d	100mm
D	140mm
s	1.5mm
