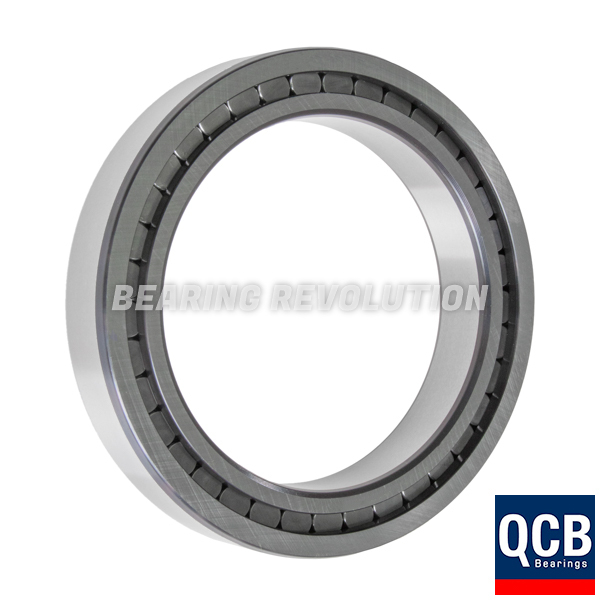

SL 18 3017, FULL COMPLEMENT CYLINDRICAL ROLLER BEARING WITH A 85MM BORE - SELECT RANGE

Name: SL 18 3017, Full Complement Cylindrical Roller Bearing with a 85mm bore - Select Range
Brand: Select
Price: 267.54 GBP
Availability: InStock

BR Stock No. S-SL 18 3017 | Brand: Select | Mfr. Part No. SL 18 3017

Single row semi-locating type cylindrical roller bearing with a full complement of rollers from our Select range. Supports radial forces as well as limited axial forces in one direction. Allows the outer and inner rings to be displaced in one axial direction with respect to each other. 85mm ID, 130mm OD, 34mm width.

Also known as NCF 3017 V

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£222.95 (£267.54 inc VAT)
5 - 9£211.80 (£254.16 inc VAT)
10 +£200.66 (£240.79 inc VAT)
Bulk Order PricesENQUIRE

SL 18 3017, Full Complement Cylindrical Roller Bearing with a 85mm bore - Select Range Schematic

Specifications for SL 18 3017, Full Complement Cylindrical Roller Bearing with a 85mm bore - Select Range
Reference	SL 18 3017
Brand	Select
Inside Diameter	85mm
Outside Diameter	130mm
Width	34mm
Weight (KG)	1.51

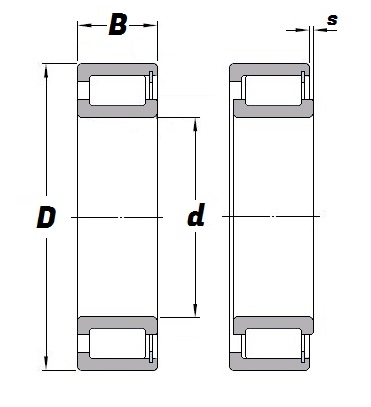

Schematic for SL 18 3017, Full Complement Cylindrical Roller Bearing with a 85mm bore - Select Range
B	34mm
d	85mm
D	130mm
s	4mm
