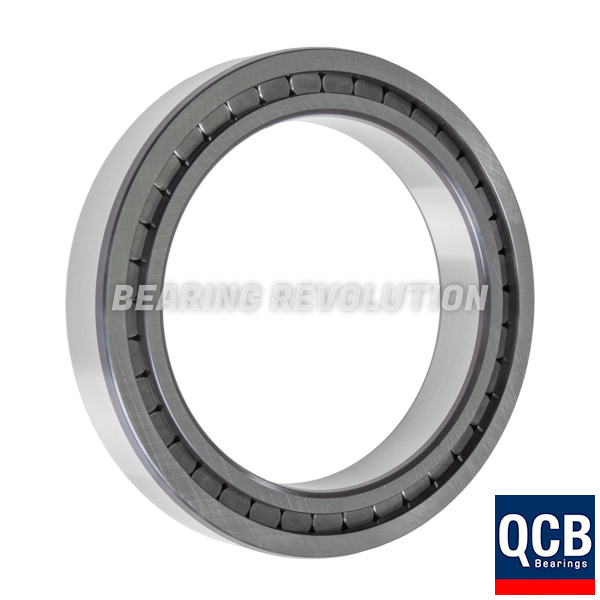

SL 18 3032 C3, FULL COMPLEMENT CYLINDRICAL ROLLER BEARING WITH A 160MM BORE - SELECT RANGE

Name: SL 18 3032 C3, Full Complement Cylindrical Roller Bearing with a 160mm bore - Select Range
Brand: Select
Price: 1,094.66 GBP
Availability: InStock

BR Stock No. S-SL 18 3032 C3 | Brand: Select | Mfr. Part No. SL 18 3032 C3

Single row semi-locating type cylindrical roller bearing with a full complement of rollers from our Select range. Supports radial forces as well as limited axial forces in one direction. Allows the outer and inner rings to be displaced in one axial direction with respect to each other. 160mm ID, 240mm OD, 60mm width.

Also known as NCF 3032 V C3

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£912.22 (£1,094.66 inc VAT)
5 - 9£866.62 (£1,039.94 inc VAT)
10 +£821.00 (£985.20 inc VAT)
Bulk Order PricesENQUIRE

SL 18 3032 C3, Full Complement Cylindrical Roller Bearing with a 160mm bore - Select Range Schematic

Specifications for SL 18 3032 C3, Full Complement Cylindrical Roller Bearing with a 160mm bore - Select Range
Reference	SL 18 3032 C3
Brand	Select
Inside Diameter	160mm
Outside Diameter	240mm
Width	60mm
Clearance	C3
Weight (KG)	8.8

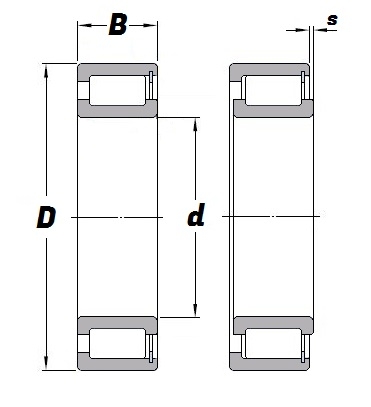

Schematic for SL 18 3032 C3, Full Complement Cylindrical Roller Bearing with a 160mm bore - Select Range
B	60mm
d	160mm
D	240mm
s	7mm
