SL 18 3036 C3, FULL COMPLEMENT CYLINDRICAL ROLLER BEARING WITH A 180MM BORE - SELECT RANGE

Name: SL 18 3036 C3, Full Complement Cylindrical Roller Bearing with a 180mm bore - Select Range
Brand: Select
Price: 1,556.27 GBP
Availability: InStock

BR Stock No. S-SL 18 3036 C3 | Brand: Select | Mfr. Part No. SL 18 3036 C3

Single row semi-locating type cylindrical roller bearing with a full complement of rollers from our Select range. Supports radial forces as well as limited axial forces in one direction. Allows the outer and inner rings to be displaced in one axial direction with respect to each other. 180mm ID, 280mm OD, 74mm width.

Also known as NCF 3036 V C3

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£1,296.89 (£1,556.27 inc VAT)
5 - 9£1,232.05 (£1,478.46 inc VAT)
10 +£1,167.20 (£1,400.64 inc VAT)
Bulk Order PricesENQUIRE

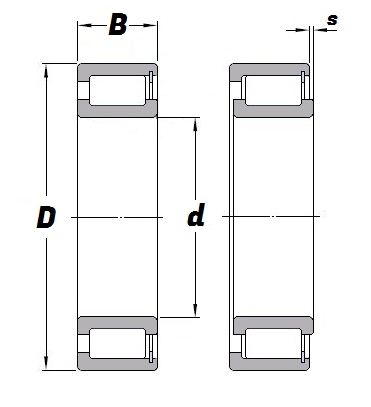

SL 18 3036 C3, Full Complement Cylindrical Roller Bearing with a 180mm bore - Select Range Schematic

Specifications for SL 18 3036 C3, Full Complement Cylindrical Roller Bearing with a 180mm bore - Select Range
Reference	SL 18 3036 C3
Brand	Select
Inside Diameter	180mm
Outside Diameter	280mm
Width	74mm
Clearance	C3
Weight (KG)	16.1
