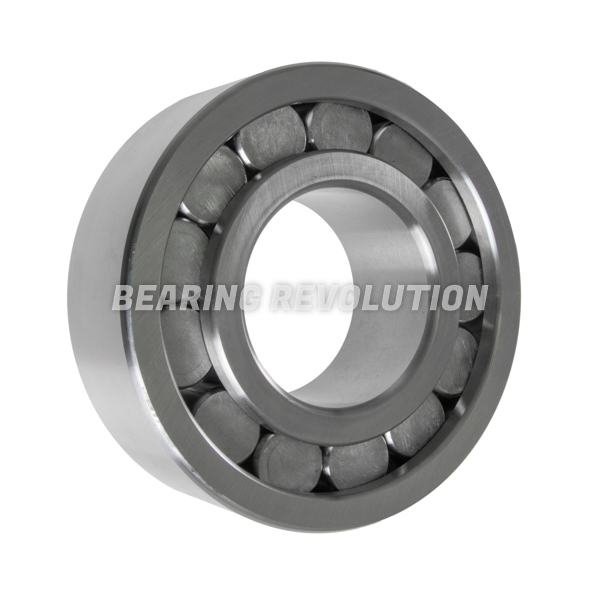

SL 19 2320 C3, FULL COMPLEMENT CYLINDRICAL ROLLER BEARING WITH A 100MM BORE - BUDGET RANGE
Single row semi-locating type cylindrical roller bearing with a full complement of rollers from our Budget range. Supports radial forces as well as limited axial forces in one direction. Allows the outer and inner rings to be displaced in one axial direction with respect to each other. 100mm ID, 215mm OD, 73mm width.
Also known as NJG 2320 VH C3
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£1,000.98 (£1,201.18 inc VAT)
- 5 - 9£950.93 (£1,141.12 inc VAT)
- 10 +£900.88 (£1,081.06 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SL 19 2320 C3, Full Complement Cylindrical Roller Bearing with a 100mm bore - Budget Range | |
| Reference | SL 19 2320 C3 |
| Brand | Budget |
| Inside Diameter | 100mm |
| Outside Diameter | 215mm |
| Width | 73mm |
| Clearance | C3 |
| Weight (KG) | 12.4 |

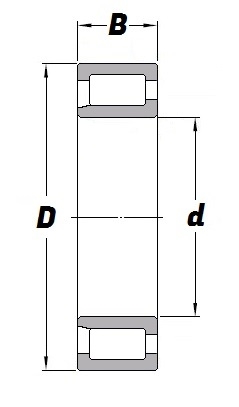

Schematic for SL 19 2320 C3, Full Complement Cylindrical Roller Bearing with a 100mm bore - Budget Range | |
| B | 73mm |
| d | 100mm |
| D | 215mm |
